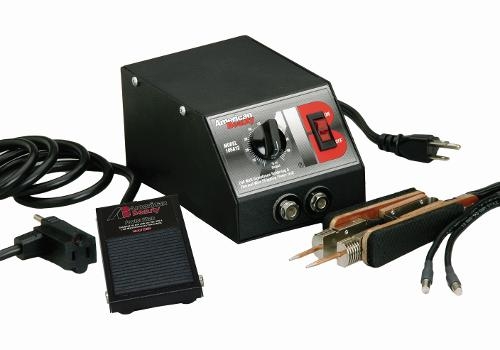

American Beauty 10504 - Resistance Soldering System

American Beauty 10504
Add to List

250 Watts of (2.7 VAC) Infinitely Variable Power: Step-less Dialing, to 100 % of the available output for precise and consistent repeatability, provides the ideal combination of intensity and control.

Soft Cushion Padding: For increased comfort and a secure grip when performing meticulous soldering applications. Provides excellent thermal and electrical insulation.

Copper-coated, stainless steel electrodes can be easily bent, notched or filed allowing the user to customize the handpiece to their specific application. Footswitch permits hands-free activation of power, vastly improving control of your applications and virtually eliminating the sparking that is common with other brands of resistance based systems.

TECHNICAL SPECIFICATIONS:
Connection Type: Tapered Pins
Wattage: 250 watts
Opening between Electrodes: .625 in / 1.59 cm
Electrode Size/Diameter: .125 in / 0.32 cm
Available in a 220-240 VAC?: Yes, available upon request
Product Length: 0.25 in / 26.04 cm
Product Width: 8.25 in / 20.96 cm
Product Height: 6.50 in / 16.51 cm
Package Weight: 8.85 lbs / 4.01 kg
Country of Origin: US
Harmonization Code:8515.11.0000
RoHS Compliant: Yes
BS EN IEC 60335-1:2023+A11:2023: Yes
BS EN IEC 61558-2-6 2001, UL 5085-3 2022: Yes
BS EN 60335-2-45:2002+A11:2023: Yes
WEEE Compliant: Yes
CE Certified: Yes

APPLICATIONS:
Users of this product have stated that they use it for several jobs which include but are not limited to:
  1. Soldering heavy transformer (through-hole) contact leads onto PC board
  2. Soldering tabs in place to provide stabilization and improved conductivity on a PCB assembly
  3. Soldering thermal fuse links (through-hole components) into a printed circuit board assembly
  4. Soldering terminations for semi-rigid (up to .141) and similar RF coaxial cable assemblies
  5. Soldering cable and wire harness assemblies and wire terminations for 12 AWG and finer
  6. Soldering high pressure .062" brass tubing line into quick disconnect brass fitting
  7. Connecting joining and assembling .925 type sterling silver jump rings
  8. Soldering tabs to create battery packs and other hobby-related electric or electronic applications
  9. Remanufacturing rebuilding and servicing small electric D.C. motors
  10. Construction of Radio Astronomy Receivers used in radio telescopes for signal amplification
  11. Starting PCB foil bond pulls for testing the strength of adhesive bonding of copper to substrate on a printed circuit board
