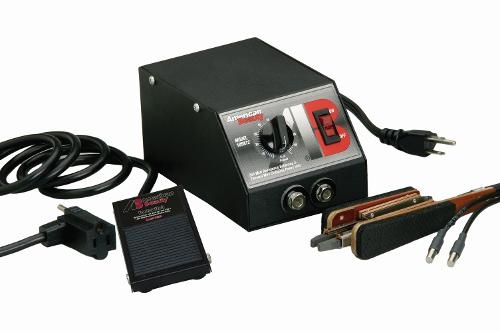

American Beauty 10506 - Light Capacity Plier-Style Resistance Soldering System

American Beauty 10506
Add to List

250 Watts (2.8 VAC) of Infinitely Variable Power Step-less Dialing to 100 % of the available output provides the ideal combination of intensity and control. Light-weight, palm-sized hand piece with comfort grip padding minimizes operator fatigue. Designed to provide excellent electrical and thermal insulation during use.
Carbon block electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application. Footswitch permits hands-free activation of power, vastly improving control of your applications and virtually eliminating the sparking that is common with other brands of resistance based systems.

TECHNICAL SPECIFICATIONS:

Connection Type: Tapered Pins
Wattage: 250 watts
Opening between Electrodes: .25 in / 0.64 cm
Electrode Size/Diameter: .25 in / 0.64 cm
Available in a 220-240 VAC?: Yes, available upon request
Product Length:10.25 in / 26.04 cm
Product Width: 8.25 in / 20.96 cm
Product Height: 6.50 in / 16.51 cm
Package Weight: 8.50 lbs / 3.86 kg
Country of Origin: US
Harmonization Code:8515.11.0000
RoHS Compliant: Yes
BS EN IEC 61558-2-6 2001, UL 5085-3 2022: Yes
BS EN IEC 60335-1:2023+A11:2023: Yes
BS EN 60335-2-45:2002+A11:2023: Yes
WEEE Compliant : Yes
CE Certified: Yes

APPLICATIONS: Users of this product have stated that they use it for several jobs which include but are not limited to:
  1. Soldering connectors in a production environment
  2. Soldering feedthru pins and preforms to housing
  3. Soldering terminations into large, close-nested, military connectors
  4. Testing the adherence of gold plating to small copper pieces
  5. Assembly of medical equipment
