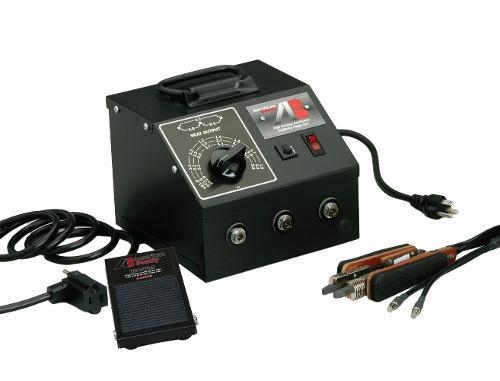

American Beauty 10507 - Standard Capacity Plier-Style Resistance Soldering System

American Beauty 10507
Add to List

1,100 Watts (5.8 VAC) of Power with 23 unique settings (Warning ~ Do not switch power settings while under load.) provides the maximum output for handpieces that utilize tapered pin connection styles. Light-weight, palm-sized hand piece with comfort grip padding minimizes operator fatigue. Designed to provide excellent electrical and thermal insulation during use.
Carbon block electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application.
Footswitch permits hands-free activation of power, vastly improving control of your applications and virtually eliminating the sparking that is common with other brands of resistance based systems.


TECHNICAL SPECIFICATIONS:
Connection Type: Tapered Pins
Wattage: 1100 watts
Opening between Electrodes: .50 in / 1.27 cm
Electrode Size/Diameter: .25 in / 0.64 cm
Available in a 220-240 VAC?: Yes, available upon request
Product Length: 12.25 in / 31.12 cm
Product Width: 12.25 in / 31.12 cm
Product Height: 10.75 in / 27.31 cm
Package Weight: 24.15 lbs / 10.95 kg
Country of Origin: US
Harmonization Code:8515.11.0000
RoHS Compliant: Yes
BS EN IEC 60335-1:2023+A11:2023: Yes
BS EN IEC 61558-2-6 2001, UL 5085-3 2022: Yes
BS EN 60335-2-45:2002+A11:2023: Yes
WEEE Compliant: Yes
CE Certified: Yes

APPLICATIONS: Users of this product have stated that they use it for several jobs which include but are not limited to:
  1. Soldering wire terminations 1/0 AWG and finer
  2. Soldering flexible stainless steel conduit assemblies
  3. Soldering a large audio connector to 8 AWG HS wire
  4. Soldering cable assemblies in production-line environment
  5. Soldering RG401 RF Cable
  6. Soldering of RF elements
  7. Soldering sculptural build/ tool making
  8. Repairing copper capillary tubes
  9. Repairing electronics
