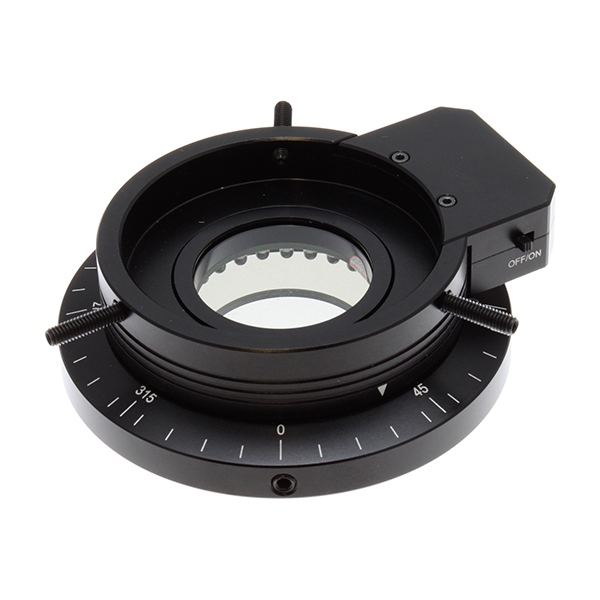

Aven 26200B-222 - LED Ring Light with Adjustable Polarizer

Aven 26200B-222
Add to List

Featuring 120 adjustable LEDs, a tinted glass analyzer for enhanced polarization effects, and an adjustable polarizer dial, Aven's LED Ring Light with Adjustable Polarizer is the ideal illumination option for inspecting shiny or reflective objects without excessive glare.  The adjustable polarizer dial indicates the level of polarization for precise accuracy.

Views Details Without Glare

Reduce the glare from shiny and reflective parts

The polarized ring light significantly reduces the glare from shiny objects, allowing operators to see details that could otherwise be obscured or washed out.

Adjustable Polarizer

  Aven's LED Ring Light with Adjustable Polarizer features a polarizer dial with reference markers.  Adjust the level of polarization by turning the dial.

Brightness Adjustment

Aven's LED Ring Light with Adjustable Polarizer features a built-in brightness dial for precise illumination control of 120 LEDs.

Features

  • Ideal for reducing glare from shiny/reflective objects
  • 120 adjustable, ultra-bright SMD LEDs
  • Polarizer dial with reference markers to adjust the level of polarization
  • Includes a tinted glass analyzer insert for enhanced polarization effects
    • LED quantity

    120pcs

    Input Votage

    DC24V/500mA

    Drive Method

    Constant Voltage

    Light Intensity

    0-100%

    Environment temperature & Humidity

    0~40-/20~80%RH

    Light color

    White

    LED Lifetime

    20,000 Hours min.

    Working Distance

    40-120mm

    Dimension(mm)

    OD is 72mm and ID is 62mm Height:33mmx Length: 99mm

    Package Contents

    LED Ring Light with Adjustable Polarizer Tinted glass analyzer Power supply User guide
