Aven 26800B-355

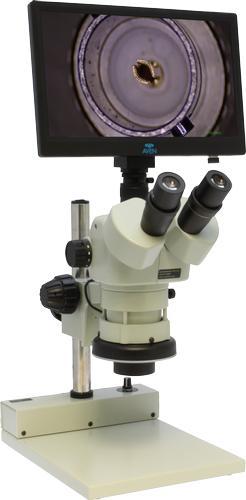

Stereo Zoom Trinocular Microscope SPZHT-135 [ 21x-135x] on Post Stand with Integrated LED Light & Monitor

  • Manufacturer: Aven
  • Category: Trinocular Microscopes
  • Model # 26800B-355
  • Pemro # AVT-4546
  • $5,027.53 $ 4,640.80/each
  • Available to Order
Add to List

Designed For Ergonomic Use

OSHA has found that working with microscopes for long hours is straining both to the visual system and the musculoskeletal system. Operators are forced into an unusual exacting position with little possibility to move the head or body. They are often forced to assume an awkward work posture such as the head bent over the eye tubes, upper part of the body bent forward, the hand reach high up for a focusing control or with the wrist bent in an unnatural position.

The Eidos microscope system is designed to overcome these issues. The 11.6" HD monitor with the built in 2 mega pixel HD camera is mounted at eye level allowing operators to sit comfortably in a good working position, making the inspection process less tiresome. The microscope can still be used when required providing the operator the best of both worlds

Flexible Viewing options

Aven's Mighty Cam Eidos offers operators flexible viewing options. By placing the camera at eye level, users can sit comfortably for the duration of their inspection as well as display their images for their colleagues. The microscope eyepieces remain available while the Eidos is active in case 3D viewing is required

Integrated Features

Mighty Cam Eidos provides all of the features needed for digital inspection.
  • 11.6" 1080p HD monitor
  • SD card reader for image and video capture
  • Menu system including exposure, white balance, grid overlays, image adjustment, compare mode, freeze frame + more
  • USB output for connection to a PC for imaging and measurement software

Pole Stand with Focus Mount and LED Illumination

This lightweight compact stand is ideal for examining small parts and where bench space is a premium. Has built in eco friendly daylight 60 LED ring light with dimmer control built into the focus mount. LED lights have a long life and low power consumption.

SPZHT-135 Microscope

SPZHT-135 provides crisp clear 3D images and a wide field of view. 21x to 135x continuous zoom with 10x eyepieces (40x-258x magnification on the 11.6" monitor)

Features

Mighty Cam Eidos

  • Convenient 2-in-one camera and monitor system
  • Simple cable management
  • Crisp HD image
  • Built in SD card reader for instant image/video capture
  • USB output for connection to your PC
  • Wireless mouse for access to settings menus
  • Grid overlays
  • Compare mode, freeze mode and mirror mode
  • Alleviate the eye strain and neck fatigue associated with frequent microscope use

SPZHT-135 Microscope

  • Total Magnification of 21X to 135X at 3.3” (84mm) working distance, Max 180X with 20X eyepieces
  • Click stop zoom adjustments for accurate, repeatable measurement
  • Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
  • Diopter adjustment on both eyepiece tubes
  • Adjustable Interpupillary Distance of 1.96” (50mm) to 2.91” (74MM) accommodates any operator
  • Multi coated optical components, free from chromatic and spherical aberration
  • One touch fine focus adjust trinocular camera port for quick, easy camera focusing and parfocaling the scope

PLED Stand

  • Light weight compact stand
  • Ideal for examining small parts
  • Comes with rack & pinion focus mount with course and fine adjustment knobs
  • Built in 60 LED ring light with dimmer control
  • Low power consumption

Specs

SPZHT-135 Trinocular Microscope with Mighty Cam Eidos 2M Integrated Camera/Monitor
Illumination 60 White LED
Body Trinocular
Magnification 21x-135x (microscope), 40x-258x (11.6" monitor)
LCD 11.6" 1080p Resolution IPS Panasonic LCD
Pixel Size 2.75*2.75um
Frame Rate 60FPS
Screen Size 11.6 inch
Interpupillary Distance 52 to 75mm
Stand Type Pole Type with built-in LED illuminator with dimmer control
Camera Mighty Cam Eidos 2M CMOS Camera
Sensor CMOS 1920*1080 FULL HD Panasonic 1/2.8"
Efficiency Resolution 1920*1080
Stand Base Dimensions 220 x 284mm
Stage Plate None
Pole/Track Height 250mm (9.84")
Weight 18lbs
Package Contents SPZHT-135 Microscope Stand PLED 26800B-512 Mighty Cam Eidos 2M Camera/Monitor 26100-260
