Aven 26800B-509 - Pole Stand with Focus Mount
- Manufacturer: Aven
- Category: Lighting & Magnification
- Model # 26800B-509
- Pemro # AVT-4572

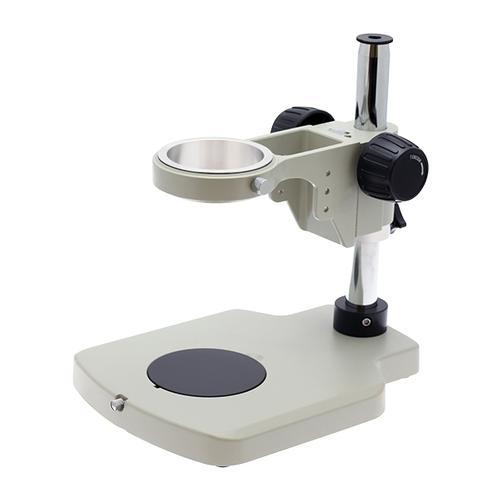

Pole Stand with Focus Mount
This lightweight and compact stand is ideal for examining small parts and where bench space is a premium. Rack & Pinion focus mount with fine focusing knobs. Will accept 74mm bodies.
NOTE: This stand not suitable for SPZ Series microscopes with 0.5x lens as vertical post is not long enough to accommodate the working distance.
Save Bench Top Space
Lightweight and compact, this stand will fit easily into your work area. Features a sturdy base, focus mount and 9.84" post.
Focus Mount
- Easily fasten the focus mount to the pole with the fastener knob.
- Easy focus adjustment with the rack and pinion focus knobs
Features
- Light weight compact stand
- Ideal for examining small parts
- Comes with rack & pinion focus mount with fine focus adjustment
- Black & White Stage Plates
- Safety clamp included
Specs
Save Bench Top Space
Lightweight and compact, this stand will fit easily into your work area. Features a sturdy base, focus mount and 9.84" post.Focus Mount
- Easily fasten the focus mount to the pole with the fastener knob.
- Easy focus adjustment with the rack and pinion focus knobs
| Pole Stand with Focus Mount | |
|---|---|
| Base Size | 210mm x 278mm x 25mm |
| Vertical Post Length | 255mm |
| Focus Mount | Rack & pinion Focus Mount with Fine Focus, 74mm diameter |
| Accepted Bodies | SSZ, SPZ, DSZ and NSW series |
| Package Contents | One Stand with Post and Focus Mount, 1 Stage Plates |
| Weight | 10 LBS |
