Aven 26800B-520 - Boom Stand Standard w/Arbor
- Manufacturer: Aven
- Category: Lighting & Magnification
- Model # 26800B-520
- Pemro # AVT-3546

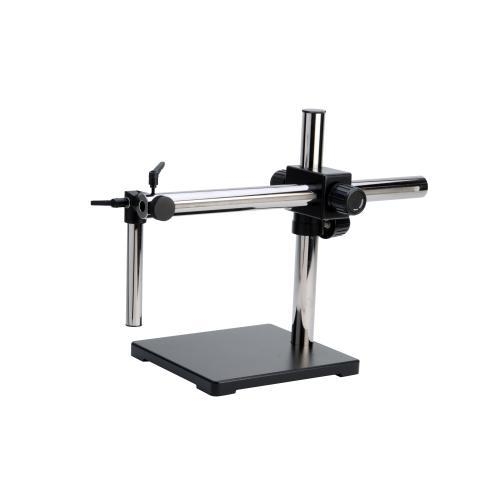

This stand allows users to position the microscope over large objects, and the heavy base provides excellent stability. The vertical post reaches 380mm providing over 264mm of working space underneath the objective lens, and all friction locking screws are capped with large knobs for easy and quick adjustments. Will accept bodies SSZ, SPZ, DSZ, and NSW series.
Includes Aven's Tiltable Arbor for focus mount attachment.
- Heavy base provides excellent stability
- Allows positioning of microscopes over large area
- Heavy duty all metal construction for durability.
- Posts are highly polished for smooth operation
| Weight | 46.6 lbs |
| Dimensions | 7 × 20 × 16 in |
| Base Size | 285 x 260 x 18mm |
| Vertical Post Length | 380mm |
| Vertical Post Diameter | 37.2mm |
| Horizontal Arm Length | 544mm |
| Horizontal Arm Diameter | 37.2mm |
| Focus Mount Hole Diameter | 15.875mm (5/8?) |
| Mounts Accepted | SCW-PA focus mount |
| Package Contents | One boom stand with heavy duty base, Users manual, Tiltable Arbor |
