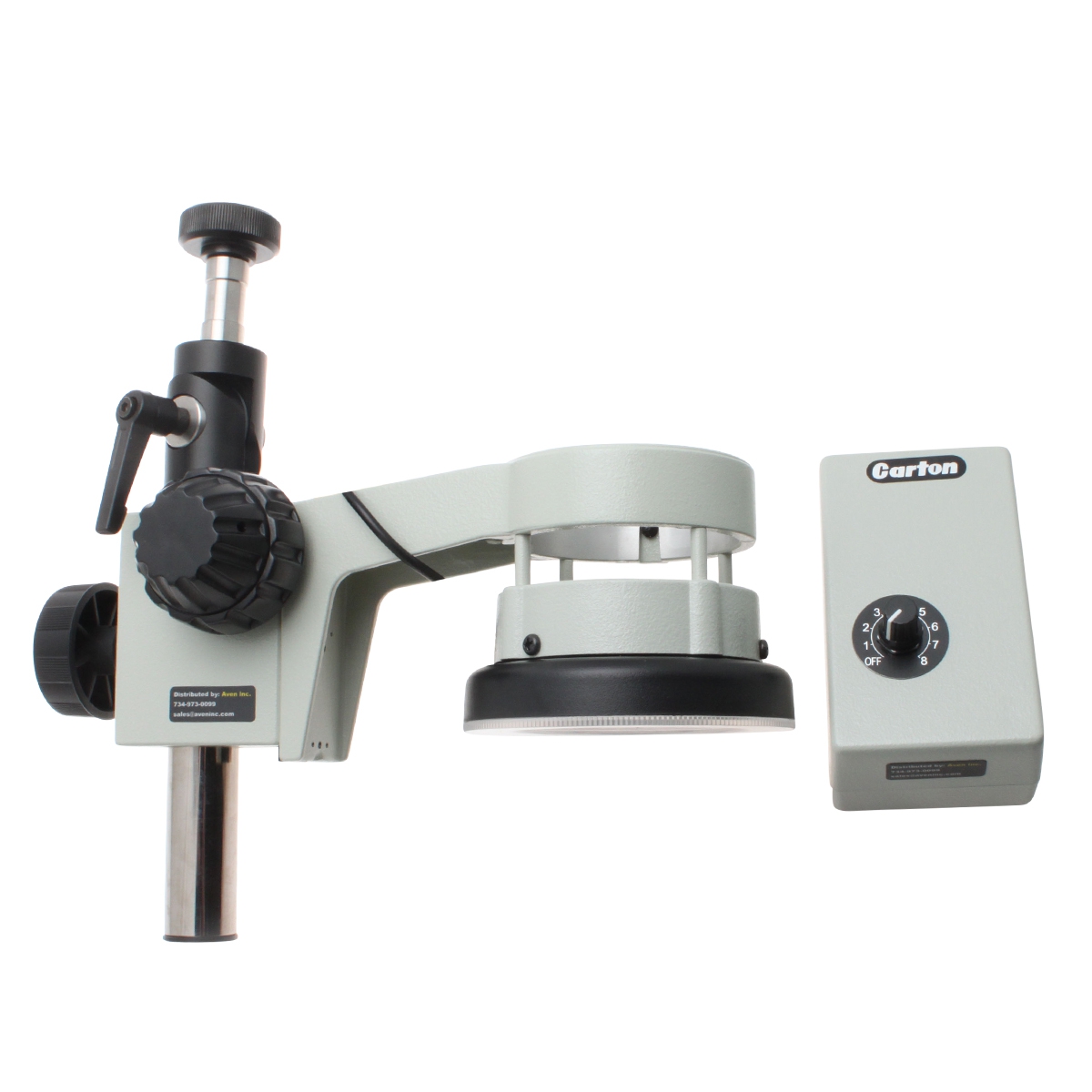

Aven 26800B-521-207 - Focus Mount/LED Ring Light with Tiltable Arbor

Manufacturer: Aven
Category: Lighting & Magnification
Model # 26800B-521-207
Pemro # AVT-4575

$966.31 $ 905.93/each

Available to Order

LED Focus Mount

LED ring light with integrated focus mount. The ring light consists of 60 ecofriendly daylight LEDs producing a light intensity of 35,000 lux and a color temperature of 5600K. The LEDs are rated for over 20,000 hours of service. Ring light is mounted securely onto Aven's standard focus mount - available in both coarse and fine focus. The unit includes a power supply box with variable dimming control.

Tiltable Arbor

Arbors are designed to extend the working range of boom stands and articulating arm stands. Allows tilting of microscope bodies to increase operator comfort. 25mm arbor diameter, length 245mm, and 15.875mm (5/8") adapter.

Extends working range
Tiltable
Increases operator comfort
Integrated LED ring light with focus mount with coarse and fine focus
Eliminates chance of LED ring becoming loose from the microscope

Tiltable Arbor
Vertical Post Length	245mm
Vertical Post Diameter	25mm
Focus Mount Hole Diameter	15.875mm (5/8")
Package Contents	One Tiltable Arbor

Ring Light LED with Integrated Focus Mount
LEDs	60
Lighting Control	Variable
Light Intensity	35,000 lux
LED Color Temperature	5600K White
Power Supply	5W, 100-120V AC 50/60HZ
Focus Mount Ring Diameter	74mm
Mounting Diameter	26.9mm
Focus Mechanism	Rack & Pinion with Tension Control
Focusing Distance	50mm in vertical direction
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Weight	2.80lbs
Package Contents	Integrated LED Ring Light with Focus Mount and Power Supply
