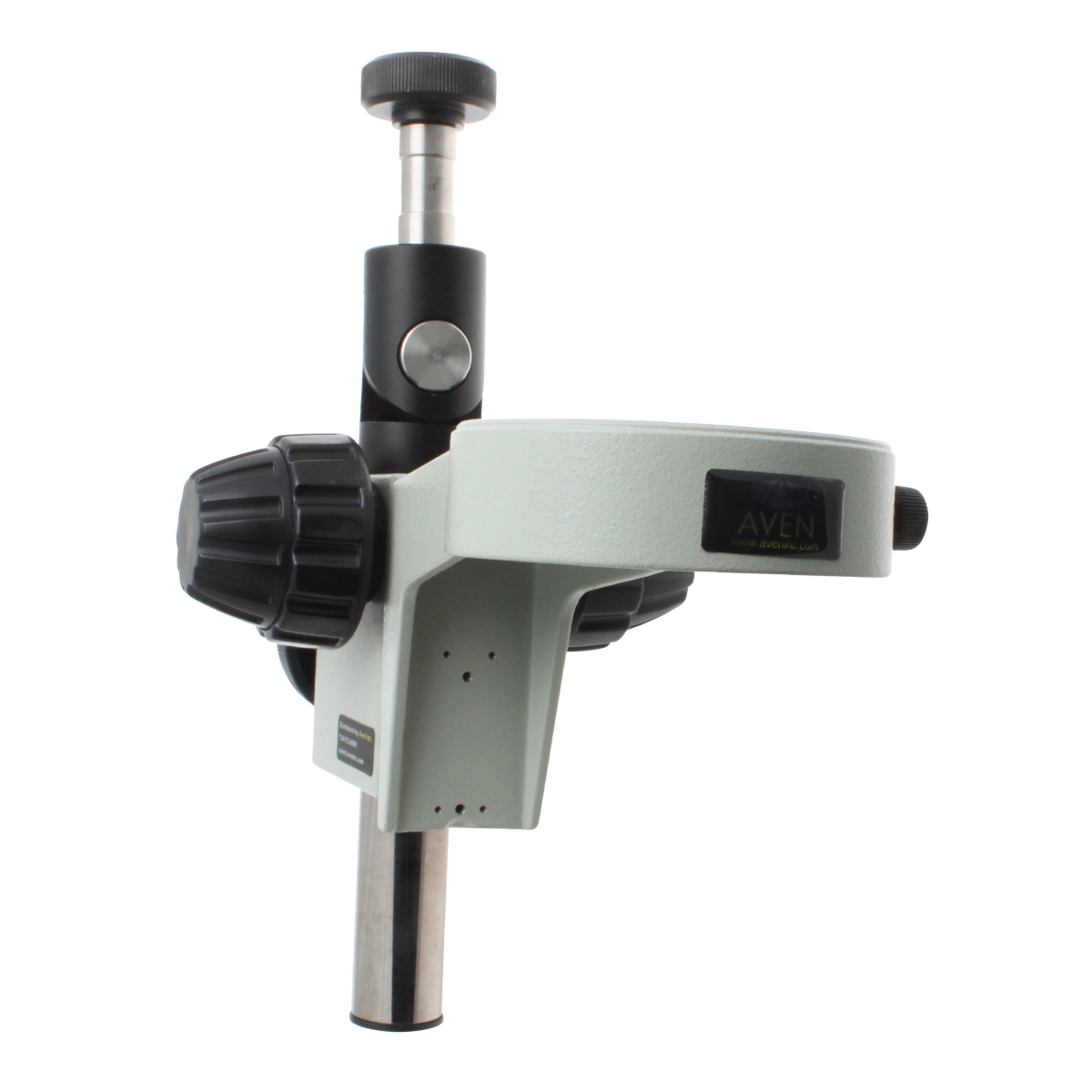

Aven 26800B-521-517 - Focus Mount with Tiltable Arbor

Manufacturer: Aven
Category: Lighting & Magnification
Model # 26800B-521-517
Pemro # AVT-4576

$624.29 $ 585.28/each

Available to Order

Focus Mount

Aven’s Focus Mount with 74mm diameter ring will accept our SSZ, SPZ, DSZ and NSW series microscopes. 26.9mm end hole adapter. A reducer ring for mounting on post size of diameter 25mm is included with the package, and a focus mount has a precision rack & pinion mechanism with tension control and coarse and fine focus knobs. A tension control adjustment pin is included with the mount.

Tiltable Arbor

Arbors are designed to extend the working range of boom stands and articulating arm stands. Allows tilting of microscope bodies to increase operator comfort. 25mm arbor diameter, length 245mm, and 15.875mm (5/8") adapter.

Coarse & Fine Focus Adjustments
Precision Rack & Pinion Mechanism with Tension Control
Extends working range
Tiltable
Increases operator comfort

Tiltable Arbor
Vertical Post Length	245mm
Vertical Post Diameter	25mm
Focus Mount Hole Diameter	15.875mm (5/8")
Package Contents	One Tiltable Arbor

Focus Mount
Focus Mount Ring Diameter	74mm
Mounting Diameter	26.9mm
Focus Mechanism	Rack & Pinion with Tension Control
Focusing Distance	50mm in vertical direction
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Package Contents	One Focus Mount and Adjustment Pin for Tension Control
