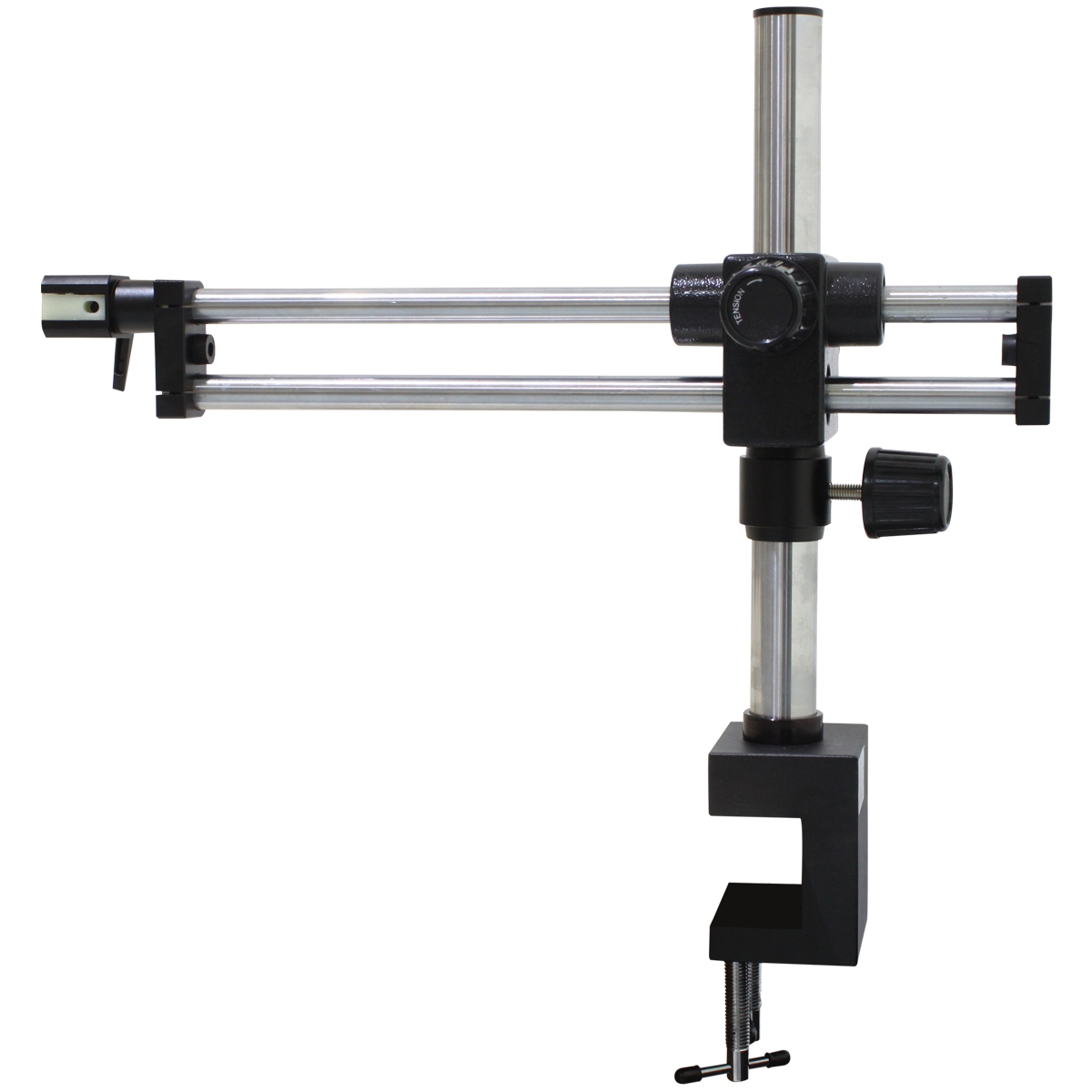

Aven 26800B-536 - Double Arm Boom Stand with Table Clamp

Smooth movement of a ball bearing slide allows you to move your microscope easily over and across the object being viewed.

Vertical and horizontal adjustment

  • Allows positioning of microscopes over large area
  • Heavy duty all metal construction for durability.
  • Posts are highly polished for smooth operation
  • Table clamp securely attaches to your work surface and saves table space.
  • Table clamp provides excellent stability
  • Allows positioning of microscopes over large area
  • Heavy duty all metal construction for durability.
  • Posts are highly polished for smooth operation
  • Table clamp securely attaches to your work surface and saves table space.
Stand Type Dual Arm Stand with table clamp
Vertical Post Height 384mm
Vertical Post Diameter F 37.2mm
Cross Adapter Type Triple (3) Hole Adapter
Horizontal Arm Type Double Bar
Horizontal Arm Length 570mm
Mounting Hole on top horizontal arm 16mm
Horizontal Diameter F 20mm
Horizontal Rotation Angle 360 Degree Rotation
Horizontal Arm Travel Distance on Z- Axis 282mm
Horizontal Arm Stretch Range 320mm (12.589")
Horizontal Arm Maximum Load 9.07kg (20.00lb)
Horizontal Arm Travel Mode on Horizontal Direction Ball Bearing
Horizontal Arm Travel Mode on Z Direction Manual
Base Type Clamp
Base Shape Rectangle
Clamp Dimensions 140x70x65mm
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 21.38 lb
Dimensions 22.441 x 11.22 x 15.95 inches
