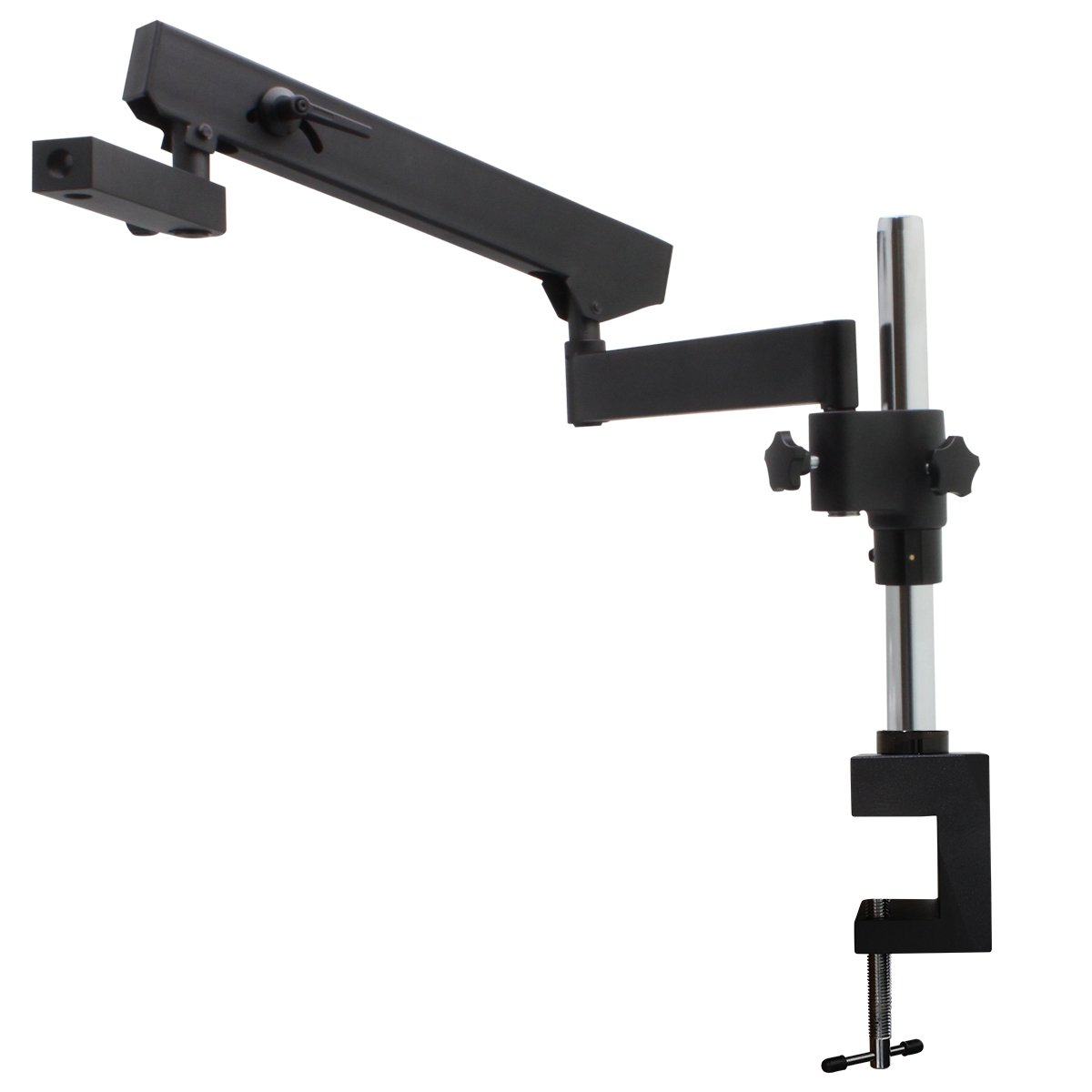

Aven 26800B-550-PCL - Articulating Arm Stand with Vertical Post and Table Clamp

Aven 26800B-550-PCL
Add to List

This versatile articulating arm stand comes with with a clamp ideal for covering a large working area, and ensuring users have maximum flexibility in positioning the scope. Can be moved out of the way when microscope is not in use to help create more bench space for your work. All metal construction.


Vertical and horizontal adjustment

  • Allows great flexibility in positioning microscopes
  • Can be moved out of way when not in use
  • All metal construction
  • Allows great flexibility in positioning microscopes
  • Can be moved out of way when not in use
  • All metal construction
  • Vertical Post Diameter: F37.2mm.
  • Total Arm Length: 800mm.
  • Mounting Hole on the Top of Horizontal Arm: 5/8? End Adapter.
  • Base Dimensions: 104x77x136mm.
  • Mount Adapter Size of Stand: F22.2mm.
  • Clamp Opening Size: 0-40mm.
Stand Type Articulating Arm
Vertical Post Height 384mm
Maximum Vertical Post Extended Length 254mm
Vertical Post Diameter F 37.2mm
Cross Adapter Type Dual Hole Adapter
Total Arm Length 800mm
Mounting Hole on the Top of Horizontal Arm 5/8" End Adapter
Horizontal Rotation Angle 360 Degree Rotatable
Horizontal Arm Maximum Load 9.07kg (20 lb)
Horizontal Arm Travel Mode on Horizontal Direction Manual
Horizontal Arm Travel Mode on Z axis Manual
Base Type Clamp
Clamp Dimensions 104 x 77 x 136mm
Mount Adapter Size of Stand F 22.2mm
Clamp Opening 0-44mm
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 11.19kg (22.669 lb)
Dimensions 330 x 150 x 405mm (12.992 x 5.906 x 15.945")
