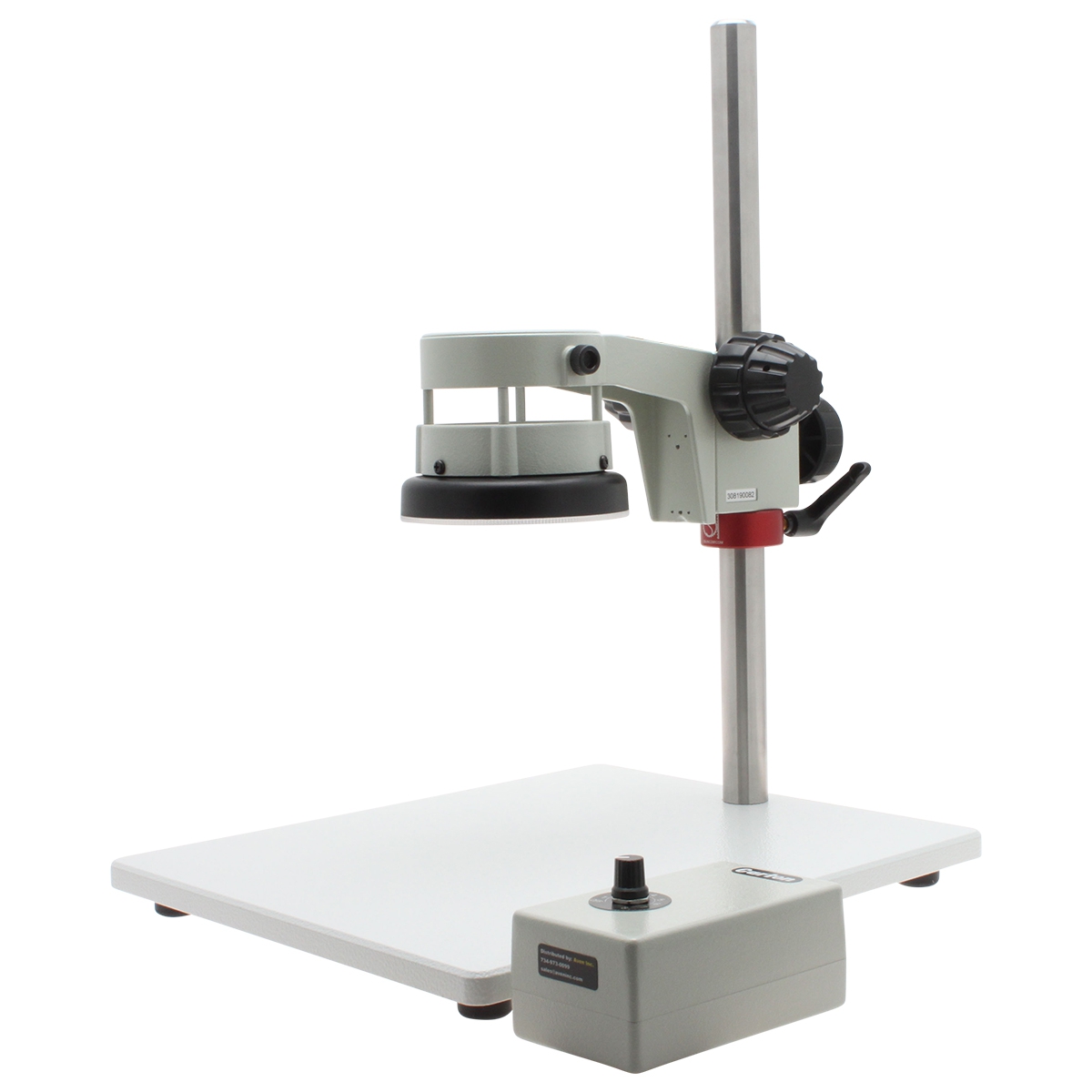

Aven 26800B-570-207 - Heavy Duty Post Stand with Safety Clamp 25mm, with Ring Light LED with Integrated Focus Mount

Manufacturer: Aven
Category: Lighting & Magnification
Model # 26800B-570-207
Pemro # AVT-4587

$1,160.65 $ 1,088.11/each

Available to Order

Post Stand

This heavy duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts. Post diameter is 25mm.

Tall and Compact

Aluminum powder coated base
All metal construction
UNC bolt and safety clamp included

Focus Mount with LED Ring Light

LED ring light with integrated focus mount. The ring light consists of 60 eco friendly daylight LEDs producing a light intensity of 35,000 lux and a color temperature of 5600K. The LEDs are rated for over 20,000 hours of service. Ring light is mounted securely onto the focus mount. The unit includes a power supply box with variable dimming control.

Aluminum powder coated base
All metal construction
UNC bolt and safety clamp included
Integrated LED ring light with focus mount with coarse and fine focus
Eliminates chance of LED ring becoming loose from the microscope

Heavy Duty Post Stand
Base Size	279 x 330 x 12.7mm
Base Weight	3.6Kg (8lbs)
Vertical Post Length	406mm
Vertical Post Diameter	25.5mm
Mounts Accepted	SCW-PA
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Package Contents	One Base, post, safety clamp and bolt for mounting post to base Hex-Key included

Ring Light LED with Integrated Focus Mount
LEDs	60
Lighting Control	Variable
Light Intensity	35,000 lux
LED Color Temperature	5600K White
Power Supply	5W, 100-120V AC 50/60HZ
Focus Mount Ring Diameter	74mm
Mounting Diameter	26.9mm
Focus Mechanism	Rack & Pinion with Tension Control
Focusing Distance	50mm in vertical direction
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Weight	2.80lbs
Package Contents	Integrated LED Ring Light with Focus Mount and Power Supply
