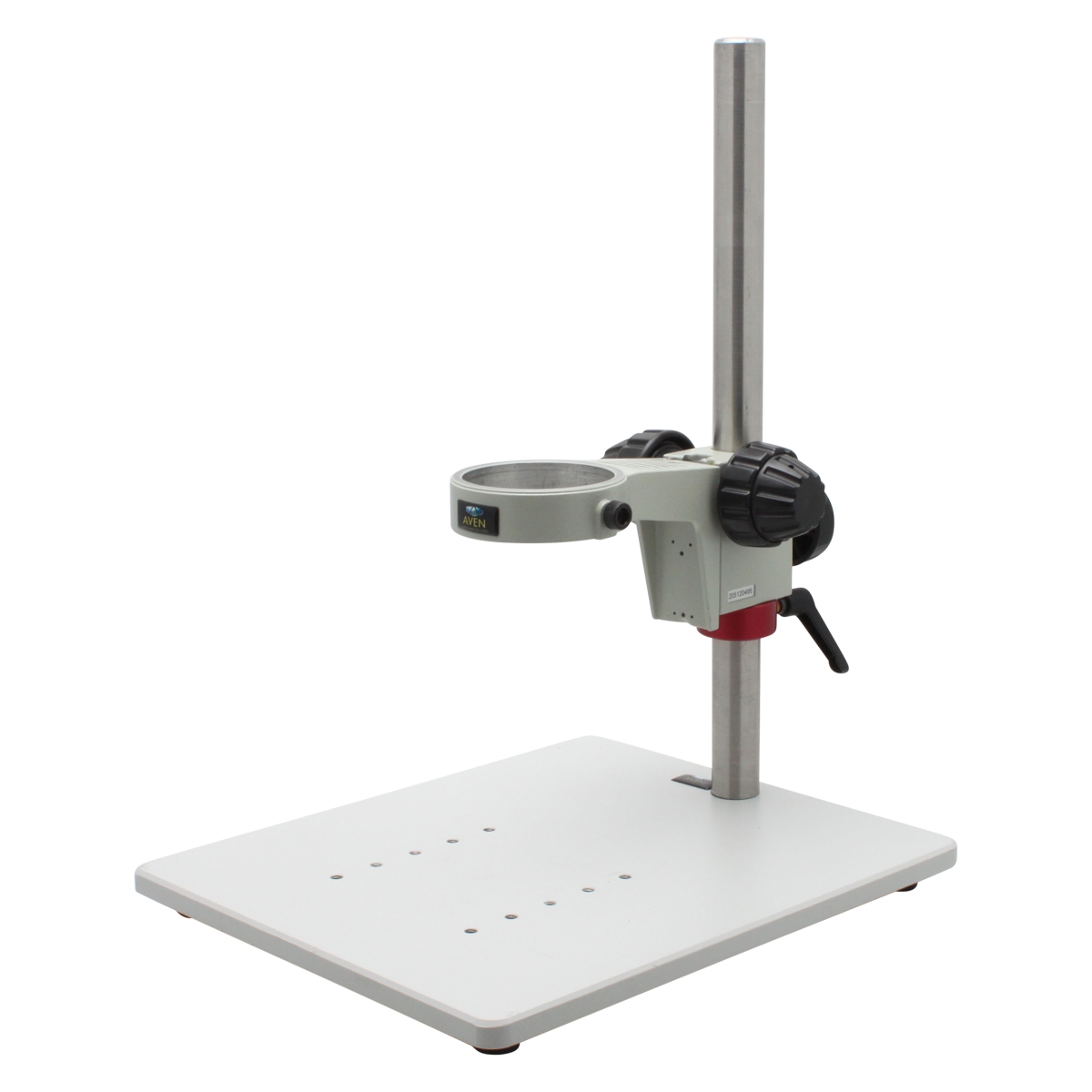

Aven 26800B-570-517 - Heavy Duty Post Stand with Safety Clamp 25mm, with Focus Mount

Manufacturer: Aven
Category: Lighting & Magnification
Model # 26800B-570-517
Pemro # AVT-4588

$818.62 $ 767.46/each

Available to Order

Post Stand

This heavy duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts. Post diameter is 25mm.

Tall and Compact

Aluminum powder coated base
All metal construction
UNC bolt and safety clamp included

Focus Mount

Aven’s Focus Mount with 74mm diameter ring will accept our SSZ, SPZ, DSZ and NSW series microscopes. 26.9mm end hole adapter. A reducer ring for mounting on post size of diameter 25mm is included with the package, and a focus mount has a precision rack & pinion mechanism with tension control and coarse and fine focus knobs. A tension control adjustment pin is included with the mount.

Aluminum powder coated base
All metal construction
UNC bolt and safety clamp included
Coarse & Fine Focus Adjustments
Precision Rack & Pinion Mechanism with Tension Control

Heavy Duty Post Stand
Base Size	279 x 330 x 12.7mm
Base Weight	3.6Kg (8lbs)
Vertical Post Length	406mm
Vertical Post Diameter	25.5mm
Mounts Accepted	SCW-PA
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Package Contents	One Base, post, safety clamp and bolt for mounting post to base Hex-Key included

Focus Mount
Focus Mount Ring Diameter	74mm
Mounting Diameter	26.9mm
Focus Mechanism	Rack & Pinion with Tension Control
Focusing Distance	50mm in vertical direction
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Package Contents	One Focus Mount and Adjustment Pin for Tension Control
