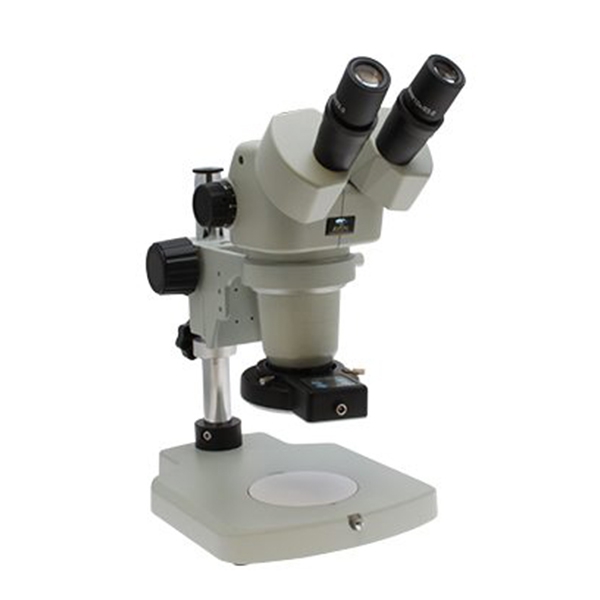

Aven DSZ-44-509-211 - Stereo Zoom Binocular Microscope DSZ-44 [10x-44x] on Track Stand and LED Ring Light

Aven DSZ-44-509-211

DSZ-44 Stereo Zoom Microscope

DSZ binocular stereo zoom microscopes offers superior quality optics and reliable mechanical components. This exceptional quality allows users to efficiently perform tasks and maintain high productivity. High precision optics ensures excellent contrast and definition 3D images from edge to edge.   Provides crisp clear 3D images and a wide field of view. 10x to 44x continuous zoom with 10x eyepieces.

Compact pole stand

This lightweight and compact stand is ideal for examining small parts and where bench space is a premium. Rack & Pinion focus mount with fine focusing knobs. Features a sturdy base, focus mount and 9.84" post.

LED Ring Light W/Brightness and Sector Control

Excellent for applications requiring a high degree of lighting control. Incorporates 60 long life LED lights that are flicker free, operate at low temperatures and do not change color over time. Provides shadow free and even illumination. Energy efficient and eco friendly.

  • Zoom ratio: 4.4:1
  • Magnification range: 10x to 44x
  • Field of view 23mm to 5.2mm (0.90" to 0.20")
  • Working distance: 90mm
  • Wide Field 10x Eyepieces (Field Number 23)
  • 60 High Intensity LED Lights
  • 7 Step Brightness Control
  • 4 sectors and each can be controlled independently
  • Flicker Free LEDs
  • No color change with temperature
  • Light weight compact stand
  • Ideal for examining small parts
  • Comes with rack & pinion focus mount with fine focus adjustment
  • Black & White Stage Plates
  • Safety clamp included
Microscope Body Type DSZV-44 Binocular, 360° rotatable, 45° inclined eyepiece tube
Eyepieces Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Zoom Ratio 4.4:1
Diopter Adjustment On both eye tubes: +5.6D-.72D
Interpupillary Distance Adjustable from 52 to 75mm
Optical System Greenough
Magnification 10x-44x with the included 10x eyepieces (see Optical Data magnification specs with optional accessories)
DSZ-44 Package Contents 1ea DSZ-44 Binocular Stereo Zoom Microscope
2 ea. 10x Eyepieces
2 ea. Rubber Eyeguards
1 ea. Dust Cover
1 ea. Instruction Manual
Base Size 210mm x 278mm x 25mm
Vertical Post Length 255mm
Focus Mount Rack & pinion Focus Mount with Fine Focus, 74mm diameter
LEDs 60
Lighting Control 7 Step Intensity Control and 4 Independent Zones
LED Color Temperature 5500K White
Light Intensity 35,000 lux
LED Power Consumption 6W
Power Supply DC 12V, 0.5A
System Components DSZ-44 Stereo Zoom Micros
