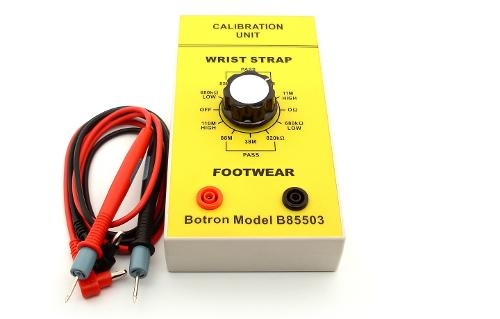

Botron B85503 - Calibration Unit for WS-HG Testers

Botron B85503
  • Manufacturer: Botron
  • Category: Foot/Wrist Testers
  • Model # B85503
  • Pemro # BOT-1816
  • $308.00 $ 298.43/each
  • Available to Order
Add to List

Calibrates Botron wrist strap and footwear testers.
The rotation of the selector switch allows you to easily check that the testers are calibrated (excluding ELITE Test Systems).

  • Lightweight, battery-powered calibration unit.
  • Very simple “Push to Test” operation leaves no room for error.
  • Test Range: 680k - 110meg
  • Wrist Strap Range:
    • Low Fail - 680k
    • Pass - 850k, 2meg, 9.1meg
    • High Fail - 11meg
  • Footwear Range
    • Low Fail - 680k
    • Pass - 88meg, 38meg, 820k
    • High Fail - 110meg
  • Accuracy Range:±15%
  • Weight: .81lbs.
  • Standards: ESD TR53
  • Size: 7" x 3.6"

Note*: Botron recommends, in accordance with ANSI/ESD S20.20, to test all personal grounding prior to entering an ESDS work environment. It is important to make sure all personal grounding equipment, including smocks, wrist straps systems, footwear and heel grounders do not exceed ANSI/ESD S20.20 requirements. Calibration of all test equipment is an integral part to all ESD control programs. S20.20 7.3 suggests that a verification regimen shall be established and measurements are to be taken and documented to assure compliance with technical requirements.
