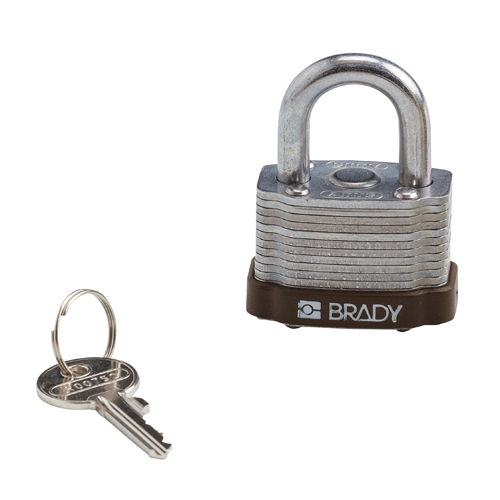

Brady 123272 - Standard Key Retaining Lockout Steel Padlocks 0.75 in Steel Shackle KD Brown

Manufacturer: Brady
Category: Padlocks
Model # 123272
Pemro # BDA-3713

$17.79 $ 17.32/each

Available to Order

Key retaining padlocks prevent the key from being removed until the padlock is fully closed.

Reinforced laminated steel withstands severe physical abuse while hardened steel shackle resists tampering
Body plates individually coated for superior rust protection
5-pin cylinder offers more unique key cuts for better tamper resistance
Made from recycled material

Application: Lockout Tagout
Body Coating/Finish: Individually Coated Laminates
Brand Name: Brady®
Color: Brown
Enables Industry Compliance (North America): OSHA 1910.147
Includes: (1) Padlock, (1) Key
Industry: Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper
Key Mechanism: Standard Pin Tumbler
Key Option: Keyed Different
Key-retaining: Yes
Labels Supplied: No
Maximum Number of Different Keycodes: 15000
Number of Keys Included: 1
Number of Labels Included: 0
Number of Pin Tumblers: 5
Padlock Body Type: Standard
Shackle Coating/Finish: Triple-coated, Hardened
Material Properties: Corrosion-resistant, Heavy-duty, Rust Protection
Padlock Body Material: Steel
Shackle Material: Steel
Indoor or Outdoor Use: Indoor/Outdoor Use
Material: Steel
Maximum Service Temperature (°C): 98.9 °C
Maximum Service Temperature (°F): 210 °F
Minimum Service Temperature (°C): -56.7 °C
Minimum Service Temperature (°F): -70 °F
Service Temperature Range (°C): -56.7 °C - 98.9 °C
Service Temperature Range (°F): -70 °F - 210 °F
Body Depth (imperial): 1 in
Body Depth (metric): 25.40 mm
Body Height (imperial): 1.1 in
Body Height (metric): 28.80 mm
Body Size (imperial): 1.1 in H x 1.7 in W x 1 in D
Body Size (metric): 28.80 mm H x 43.30 mm W x 25.40 mm D
Body Width (imperial): 1.7 in
Body Width (metric): 43.30 mm
Depth (metric): 25.40 mm
Dimensions (metric): 43,30 mm (W) x 25,40 mm (D)
Shackle Diameter (imperial): 0.25 in
Shackle Diameter (metric): 6.35 mm
Shackle Horizontal Clearance (imperial): 0.8 in
Shackle Horizontal Clearance (metric): 20.32 mm
Shackle Vertical Clearance: 0.75 in
Shackle Vertical Clearance (metric): 19.05 mm
Width (metric): 43.30 mm
EU RoHS Compliant: No
CA Prop 65 Warning: Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov
