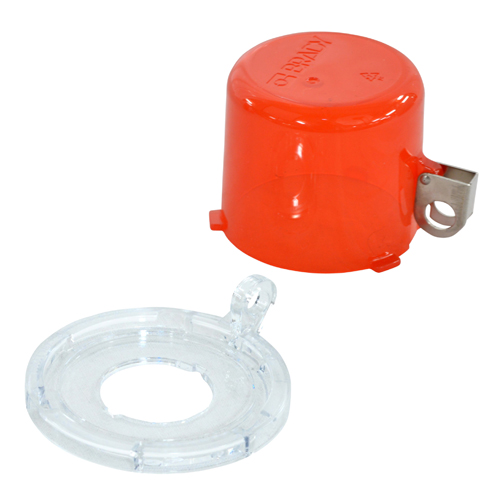

Brady 130821 - Red Push Button Lockout, Large Base + Medium Cover, Button 30 mm

Manufacturer: Brady
Category: Tags
Model # 130821
Pemro # BDL-1123

$32.59 $ 31.74/each

Ships in 1 business day

Push Button and E-Stop Safety Covers temporarily prevent access to the ON/OFF and engaged emergency stop controls for production and facility utility operating equipment.

Safety Covers quickly and efficiently secure facility production and operating equipment at the point of need
Includes a permanently mounted base and a removable cover
Equipping your employees with the proper lockout tools can save lives, reduce lost employee time, and cut insurance costs
Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices

Application: Lockout Tagout
Brand Name: Brady®
Button Type: IEC, NEMA
Color: Red
Enables Industry Compliance (North America): OSHA 1910.147
Includes: (1) Cover, (1) Yellow Label, (1) Adhesive Backing, (1) Base, (1) Red Label
Industry: Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper
Maximum Number of Padlocks: 1
Risk Type: Electrical Risk, Mechanical Risk
Adhesive (Y/N): Yes
Lockout Material: Polycarbonate
Brady Material Number: LOTO-72
Material: Polycarbonate
Material Type: Plastic
Maximum Service Temperature (°C): 80 °C
Maximum Service Temperature (°F): 176 °F
Minimum Service Temperature (°C): -20 °C
Minimum Service Temperature (°F): -4 °F
Service Temperature Range (°C): -20 °C - 80 °C
Service Temperature Range (°F): -4 °F - 176 °F
Button Size (Imperial): 1.181 in
Button Size (metric): 30.00 mm
Diameter (imperial): 2.894 in
Diameter (metric): 73.50 mm
Dimensions (imperial): 2.15 in H x 2.894 in Dia
Dimensions (metric): 54,60 mm (H) x 73,50 mm (Dia)
Height (imperial): 2.15 in
Height (metric): 54.60 mm
Hole Inside Diameter (imperial): 1.22 in
Hole Inside Diameter (metric): 31.00 mm
Maximum Shackle Diameter (imperial): 0.276 in
Maximum Shackle Diameter (metric): 7.00 mm
EU RoHS Compliant: No
