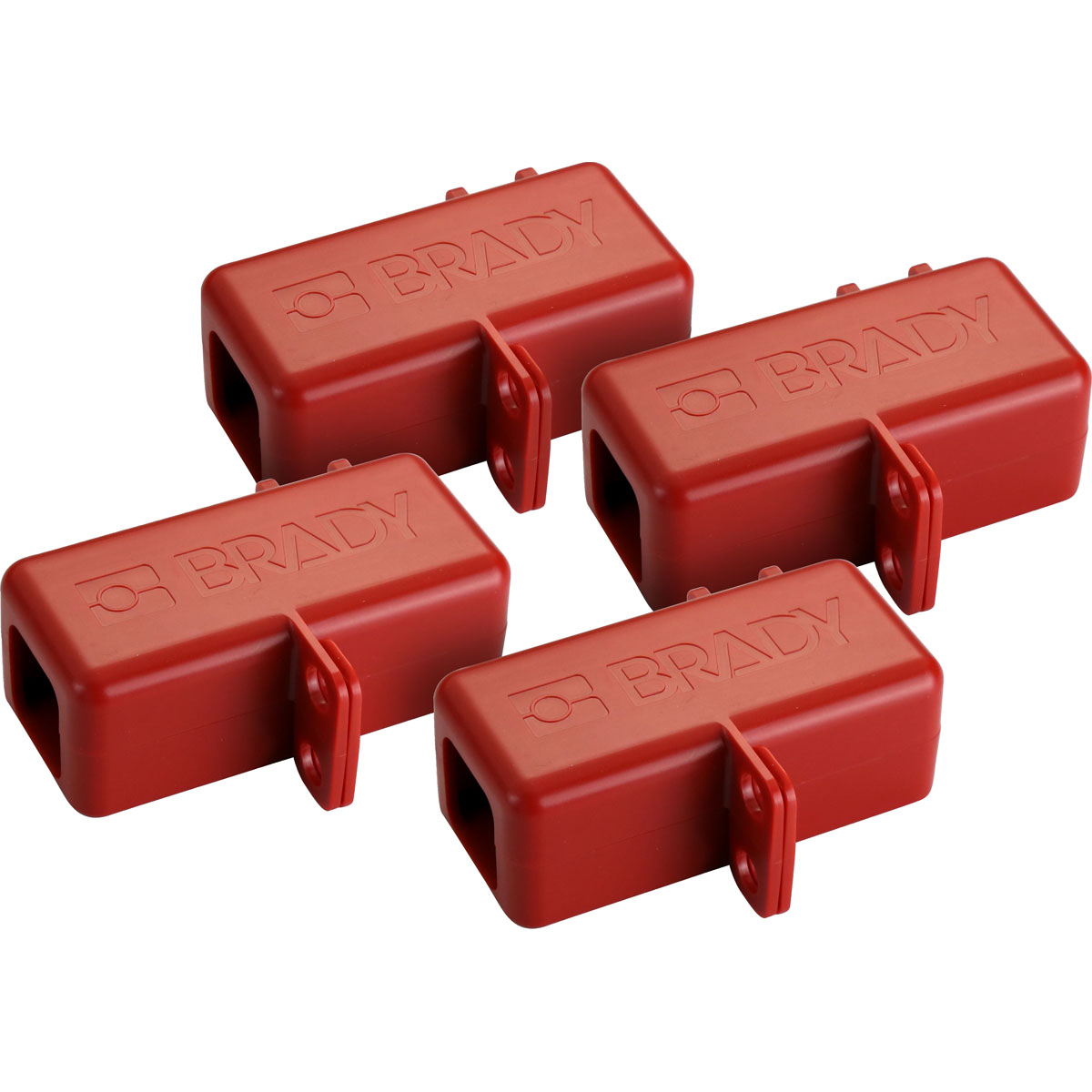

Brady 150822 - BatteryBlock™ Battery Cable Lockout, Commercial Vehicle Max Cord Dia 0.94, 24 PK

Manufacturer: Brady
Category: Plug
Model # 150822
Pemro # BDC-1350

$416.99 $ 386.10/each

Ships in 1 business day

Get easy prevention of an accidental battery connection during your service projects on commercial vehicles with the BatteryBlock™ Battery Cable Lockout.

Innovative non-conductive post slips through the terminal end of the battery cable to prevent it from slipping or being pulled out of the device
A tool that fits your space – low profile design means it easily fits into your tight working areas
Small size fits endline battery cables
Keep it locked out with space for two safety padlocks
Pack includes 24 small lockout devices making it ideal for large repair shops

Application: Lockout Tagout
Brand Name: Brady®
Color: Red
Enables Industry Compliance (North America): OSHA 29 CFR 1910.147
Industry: Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper
Labels Supplied: No
Maximum Number of Padlocks: 2
Plug Lockout Type: Plug-Encasing
Risk Type: Electrical Risk
Trade Name: BatteryBlock
Brady Material Number: LOTO-102
Material: ABS
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 100 °C
Service Temperature Range (°F): -40 °F - 212 °F
Depth (imperial): 2.9 in
Depth (metric): 73.66 mm
Dimensions (imperial): 1.4 in H x 3.75 in W x 2.9 in D
Dimensions (metric): 95,25 mm (W) x 35,56 mm (H) x 73,66 mm (D)
Height (imperial): 1.4 in
Height (metric): 35.56 mm
Maximum Cord Diameter (imperial): 0.94 in
Maximum Cord Diameter (metric): 23.88 mm
Maximum Plug Diameter (imperial): 1.25 in
Maximum Plug Diameter (metric): 31.80 mm
Maximum Plug Length (imperial): 3 in
Maximum Plug Length (metric): 76.20 mm
Maximum Plug Size (imperial): 3 in L x 1.25 in Dia
Maximum Plug Size (metric): 76.20 mm L x 31.80 mm Dia
Maximum Shackle Diameter (imperial): 0.31 in
Maximum Shackle Diameter (metric): 7.87 mm
Width (imperial): 3.75 in
Width (metric): 95.25 mm
EU RoHS Compliant: Yes
