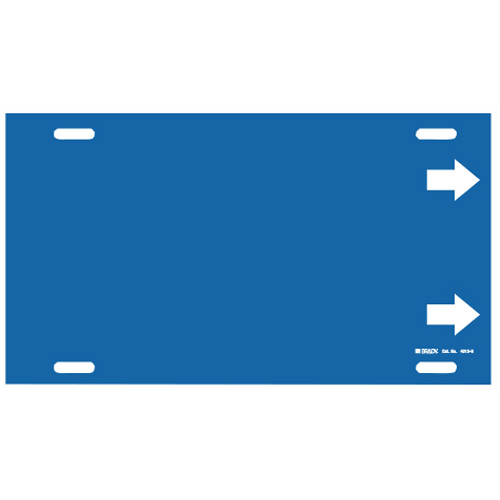

Brady 4013-H - Blank Pipe Marker with Arrow, 10" H x 32" W, Fits Pipes 10" Dia. Thru 15" Dia.

Manufacturer: Brady
Category: Blank Tags
Model # 4013-H (42315)
Pemro # BDY-6501

$28.59 $ 27.84/each

Available to Order

The ASME (ANSI) Standard for pipe identification is a widely used guideline in determining pipe identification requirements.

Designed for general purpose pipe identification
May be applied to dirty, oily, greasy or rough surfaces
Meets ASME (ANSI) Standard
Lightweight coiled plastic can be removed and reapplied
Includes two nylon straps for mounting to pipes
Additional strapping (Brady 41772) sold separately

Application: Pipe and Valve Marking
Arrow Direction: Directional
Brand Name: Brady®
Cards or Sheets per Pack: 1
Class: General Purpose
Color: White on Blue
Country: US, CA, MX
Enables Industry Compliance (North America): ANSI A13.1, ASTM D 1593
Includes: (2) Nylon Mounting Straps, Pipe Marker
Legend Background Colour: Blue
Legend Style: Pictogram and Print/Write
Legend Text Colour: White
Pipe Marker Mounting Style: Strap-On
Pipe Marker Style: H
Pre-Printed Areas on Label: Arrows
Printer supply or Pre-printed: Pre-printed
Quantity per Card or Sheet: 1
Trade Name: Strap-On
Average Outdoor Durability: 5 to 8 Years
Resistance Properties: Abrasion-resistant, Chemical-resistant
Brady Material Number: B-915
Indoor or Outdoor Use: Outdoor Use
Material: Plastic
Material Type: Plastic
Maximum Service Temperature (°C): 60 °C
Maximum Service Temperature (°F): 140 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 60 °C
Service Temperature Range (°F): -40 °F - 140 °F
Character Height (imperial): 3.5 in
Character Height (metric): 88.90 mm
Dimensions (imperial): 10 in H x 32 in W
Dimensions (metric): 81,28 cm (W) x 25,40 cm (H)
Height (imperial): 10 in
Height (metric): 25.40 cm
Maximum Outside Pipe Diameter (imperial): 15 in
Maximum Pipe Diameter (metric): 381.00 mm
Minimum Pipe Diameter (imperial): 10 in
Minimum Pipe Diameter (metric): 254.00 mm
Pipe Diameter Range (imperial): 10 - 15"
Pipe Diameter Range (metric): 254.00 - 381.00 mm
Width (imperial): 32 in
Width (metric): 81.28 cm
EU RoHS Compliant: No
