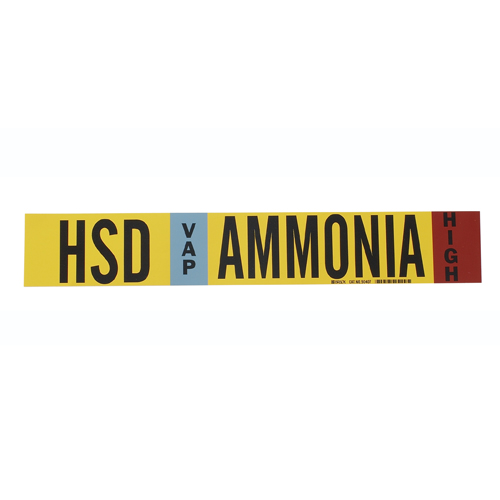

Brady 90407 - HSD VAP AMMONIA HIGH Pipe Marker, 2.25" H x 14" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.

Manufacturer: Brady
Category: Self-Sticking Pipe Markers
Model # 90407
Pemro # BDW-1787

$6.89 $ 6.71/each

Ships in 1 business day

These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.

IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
Style 1 pipe markers measure 2-1/4 in. x 14 in., come one marker per card, and fit pipe diameter 2-1/2 in. to 7-7/8 in.
B-946 Pressure Sensitive Vinyl is printed with weather-resistant inks and is suitable for indoor and outdoor applications
Use with directional arrow pipe markers or banding tape

Application: Pipe and Valve Marking
Arrow Direction: No Arrow
Brand Name: Brady®
Cards or Sheets per Pack: 1
Class: Other liquids
Color: Black, Blue, Red on Yellow
Combined IIAR Legend: AMMONIA HSD VAP HIGH
Country: US, CA, MX
Enables Industry Compliance (North America): ANSI A13.1
IIAR Legend: AMMONIA
IIAR Phase: VAP
IIAR Pressure Level: HIGH
IIAR System Abbreviation: HSD
Legend Background Colour: Blue, Red, Yellow
Legend Style: Text
Legend Text Colour: Black
Pipe Marker Mounting Style: Self-Adhesive
Pipe Marker Style: 1
Pre-Printed Areas on Label: IIAR Legend
Printer supply or Pre-printed: Pre-printed
Quantity per Card or Sheet: 1
Self-Adhesive Pipe Marker Format: Die-Cut on Cards
Text Language: English
Text Legend: HSD VAP AMMONIA HIGH
Average Outdoor Durability: 8 to 10 Years
Resistance Properties: Abrasion-resistant, Chemical-resistant, Weather-resistant
Adhesive Type: Permanent Acrylic
Brady Material Number: B-946
Compatible Surface Types: General
Finish: Gloss
Indoor or Outdoor Use: Outdoor Use
Material: Vinyl
Material Type: Vinyl
Maximum Service Temperature (°C): 82 °C
Maximum Service Temperature (°F): 180 °F
Minimum Application Temperature (°C): -18 °C
Minimum Application Temperature (°F): 0 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 82 °C
Service Temperature Range (°F): -40 °F - 180 °F
Thickness (imperial): 0.004 in
Thickness (metric): 0.102 mm
Character Height (imperial): 2 in
Character Height (metric): 50.80 mm
Dimensions (imperial): 2.25 in H x 14 in W
Dimensions (metric): 35,56 cm (W) x 57,15 mm (H)
Height (imperial): 2.25 in
Height (metric): 57.15 mm
Maximum Outside Pipe Diameter (imperial): 7.875 in
Maximum Pipe Diameter (metric): 200.03 mm
Minimum Pipe Diameter (imperial): 2.5 in
Minimum Pipe Diameter (metric): 63.50 mm
Pipe Diameter Range (imperial): 2.5 - 7.875"
Pipe Diameter Range (metric): 63.50 - 200.03 mm
Width (imperial): 14 in
Width (metric): 35.56 cm
EU RoHS Compliant: Yes
