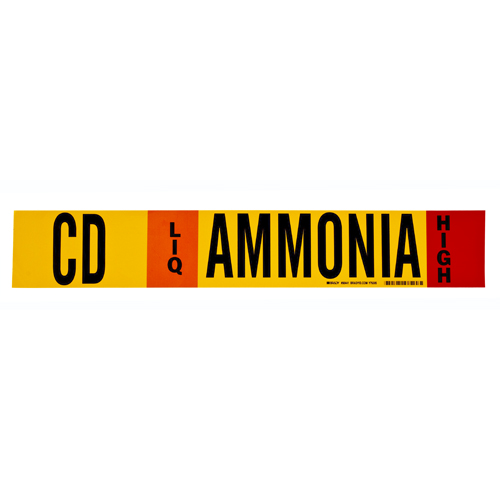

Brady 90441 - CD LIQ AMMONIA HIGH Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger

Manufacturer: Brady
Category: Self-Sticking Pipe Markers
Model # 90441
Pemro # BDW-1821

$7.59 $ 7.39/each

Ships in 1 business day

These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.

IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
Style 1HV pipe markers measure 4 in. x 24 in., come with one marker per card and fit 8 in. or greater pipe diameter
B-946 Pressure Sensitive Vinyl is printed with weather-resistant inks and is suitable for indoor and outdoor applications
Use with directional arrow pipe markers or banding tape

Application: Pipe and Valve Marking
Arrow Direction: No Arrow
Brand Name: Brady®
Cards or Sheets per Pack: 1
Class: Other liquids
Color: Black, Orange, Red on Yellow
Combined IIAR Legend: AMMONIA CD LIQ HIGH
Country: US, CA, MX
Enables Industry Compliance (North America): ANSI A13.1
IIAR Legend: AMMONIA
IIAR Phase: LIQ
IIAR Pressure Level: HIGH
IIAR System Abbreviation: CD
Legend Background Colour: Orange, Red, Yellow
Legend Style: Text
Legend Text Colour: Black
Pipe Marker Mounting Style: Self-Adhesive
Pipe Marker Style: 1HV
Pre-Printed Areas on Label: IIAR Legend
Printer supply or Pre-printed: Pre-printed
Quantity per Card or Sheet: 1
Self-Adhesive Pipe Marker Format: Die-Cut on Cards
Text Language: English
Text Legend: CD LIQ AMMONIA HIGH
Average Outdoor Durability: 8 to 10 Years
Resistance Properties: Abrasion-resistant, Chemical-resistant, Weather-resistant
Adhesive Type: Permanent Acrylic
Brady Material Number: B-946
Compatible Surface Types: General
Finish: Gloss
Indoor or Outdoor Use: Outdoor Use
Material: Vinyl
Material Type: Vinyl
Maximum Service Temperature (°C): 82 °C
Maximum Service Temperature (°F): 180 °F
Minimum Application Temperature (°C): -18 °C
Minimum Application Temperature (°F): 0 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 82 °C
Service Temperature Range (°F): -40 °F - 180 °F
Thickness (imperial): 0.004 in
Thickness (metric): 0.102 mm
Character Height (imperial): 3.5 in
Character Height (metric): 88.90 mm
Dimensions (imperial): 4 in H x 24 in W
Dimensions (metric): 60,96 cm (W) x 101,60 mm (H)
Height (imperial): 4 in
Height (metric): 101.60 mm
Minimum Pipe Diameter (imperial): 8 in
Minimum Pipe Diameter (metric): 203.20 mm
Pipe Diameter Range (imperial): 8" or larger
Pipe Diameter Range (metric): 203.20 mm or larger
Width (imperial): 24 in
Width (metric): 60.96 cm
EU RoHS Compliant: Yes
