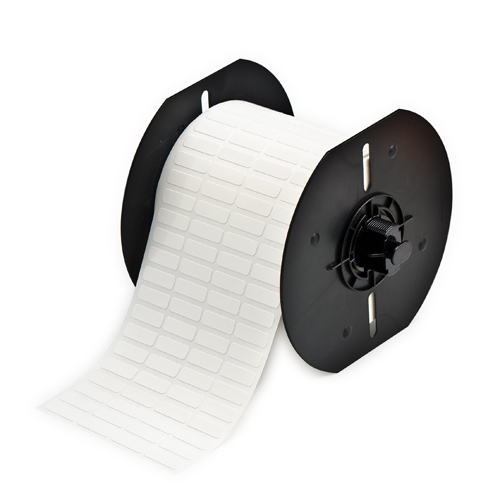

Brady B33-1-498 - B33 Series Vinyl Cloth with Repositionable Labels 0.25in H x 0.75in W WT 5000/RL

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # B33-1-498 (142872)
Pemro # BDZ-6120

$183.99 $ 173.16/each

Ships in 1 business day

Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.

The adhesive and cloth backing offers excellent holding power, yet allows for clean removal and repositioning
Sticks to any clean, dry surface
Specially formulated topcoat for excellent print quality
Semi-gloss finish for a crisp, clean look
A ribbon is required to print this material. Use Part Number B30-R6200

Application: Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Wire and Cable Labeling
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, UL Recognized
Industry: Electrical, Energy utilities, ICT, Laboratory, Voice & data communication
Industry Compliance: UL
Lab Application: General Laboratory Identification, Tissue Cassettes, Vials
Printer and Label Applications: Wire & Cable
Printer Compatibility: i3300, i5300, BBP33, i4311
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 5000
Quantity per Row: 4
Recommended Ribbon: B30-R6200
Recommended Ribbon Series: R6200
Ribbon Series: B30 Monocolour Series
Shape: Rectangle
Smart Cell: Yes
Total Quantity: 5000
Trade Name: CleanLift®
Average Outdoor Durability: Not Recommended
Performance Characteristics: Abrasion resistance, Low temperature resistance, Removable
Adhesive Type: Repositionable Rubber
Approval/Compliance (EMEA): UL Recognised
Brady Material Number: B-498
Compatible Surface Types: Low Surface Energy
Finish: Semi-gloss
Material: Vinyl Cloth
Material Type: Vinyl
Maximum Service Temperature (°C): 80 °C
Maximum Service Temperature (°F): 176 °F
Minimum Application Temperature (°C): 10 °C
Minimum Application Temperature (°F): 50 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 80 °C
Service Temperature Range (°F): -40 °F - 176 °F
Thickness (imperial): 0.0073 in
Thickness (metric): 0.185 mm
Dimensions (imperial): 0.25 in H x 0.75 in W
Dimensions (metric): 19,05 mm (W) x 6,35 mm (H)
Height (imperial): 0.25 in
Height (metric): 6.35 mm
Horizontal Repeat (imperial): 0.8 in
Horizontal Repeat (metric): 20.32 mm
Label/Tape Size (imperial): 0.25 in H x 0.75 in W
Label/Tape Size (metric): 6.35 mm H x 19.05 mm W
Maximum Wire Diameter (imperial): 0.08 in
Maximum Wire Diameter (metric): 2.03 mm
Maximum Wire Gauge: 1 AWG
Minimum Wire Diameter (imperial): 0.03 in
Minimum Wire Diameter (metric): 0.76 mm
Minimum Wire Gauge: 8 AWG
Vertical Repeat (imperial): 0.35 in
Vertical Repeat (metric): 8.89 mm
Web Width (imperial): 3.35 in
Web Width (metric): 85.09 mm
Width (imperial): 0.75 in
Width (metric): 19.05 mm
Wire Diameter Range (imperial): 0.03 in - 0.08 in
Wire Diameter Range (metric): 0.76 mm to 2.03 mm
Wire Gauge Range: 8 AWG - 1 AWG
EU RoHS Compliant: Yes
