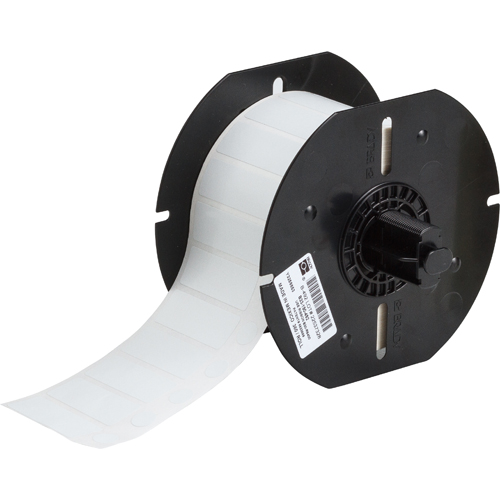

Brady B33-190-492 - FreezerBondz Ultra-Thin Cryogenic Polyester Lbl w/ Vial Top 0.6 x 1.625 x 0.375in Dia 1500/RL

Manufacturer: Brady
Category: Printer Tapes & Labels
Model # B33-190-492 (134096)
Pemro # BDL-3880

$139.99 $ 131.75/each

Ships in 1 business day

Take on extreme temps and curved surfaces with B-492 FreezerBondz™ Ultra-Thin Cryogenic Polyester Labels. Apply directly to pre-frozen glass, plastic and stainless steel.

Specialized – Aggressive adhesive B-492 FreezerBondz™ labels are ideal for curved, frozen surfaces like vials, centrifuge samples, tubes and slides
Durable – Labels withstand chemicals, abrasions, storage in liquid nitrogen and a high/low temperature range of -320° to 212°F (-196° to 100°C)
Adhesive – Permanent acrylic adhesive for tight bonding onto smooth, curved surfaces, or wrapping around tubes and vials with a 1/8 in. overlap
Certifications – RoHS compliant to 2011/65/EU (Pass 2015/863)
For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
A ribbon is required to print this material. Use Part Number B30-R6400

Application: Laboratory Labeling
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000
Industry: Laboratory, Healthcare, Biotechnology
Lab Application: Conical Tubes, General Laboratory Identification, Large Tubes, Tubes, Vial Tops, Vials
Printer and Label Applications: Laboratory
Printer Compatibility: BBP33, i3300, i5300, i4311
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 1500
Quantity per Row: 1
Recommended Ribbon: B30-R6400
Recommended Ribbon Series: R4300, R6400
Ribbon Series: R4300, R6400
Secondary Label Included: Secondary Label is Included
Shape: Rectangle and Circle
Smart Cell: Yes
Total Quantity: 1500
Average Outdoor Durability: Not Recommended
Label Properties: Aggressive Adhesive, Low Temperature, Permanent Adhesive
Material Properties: Cold-temperature application, Cryogenic storage
Adhesive Type: Permanent Acrylic
Brady Material Number: B-492
Compatible Surface Types: Cold, High Surface Energy
Finish: Gloss
Material: FreezerBondz™ Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 110 °C
Maximum Service Temperature (°F): 230 °F
Minimum Application Temperature (°C): -196 °C
Minimum Application Temperature (°F): -320 °F
Minimum Service Temperature (°C): -196 °C
Minimum Service Temperature (°F): -320 °F
Service Temperature Range (°C): -196 °C - 110 °C
Service Temperature Range (°F): -320 °F - 230 °F
Thickness (imperial): 0.0032 in
Thickness (metric): 0.081 mm
Diameter (imperial): 0.375 in
Diameter (metric): 9.53 mm
Dimensions (imperial): 0.6 in H x 1.625 in W x 0.375 in Dia
Dimensions (metric): 41,28 mm (W) x 15,24 mm (H) x 9,53 mm (Dia)
Height (imperial): 0.6 in
Height (metric): 15.24 mm
Label/Tape Size (imperial): 0.6 in H x 1.625 in W x 0.375 in Dia
Label/Tape Size (metric): 15.24 mm H x 41.28 mm W x 9.53 mm Dia
Secondary Label Diameter (imperial): 0.375 in
Secondary Label Diameter (metric): 9.53 mm
Vertical Repeat (imperial): 0.7 in
Vertical Repeat (metric): 17.78 mm
Vial/Tube Size (metric): 4.0 mL
Web Width (imperial): 2.3 in
Web Width (metric): 58.42 mm
Width (imperial): 1.625 in
Width (metric): 41.28 mm
EU RoHS Compliant: Yes
