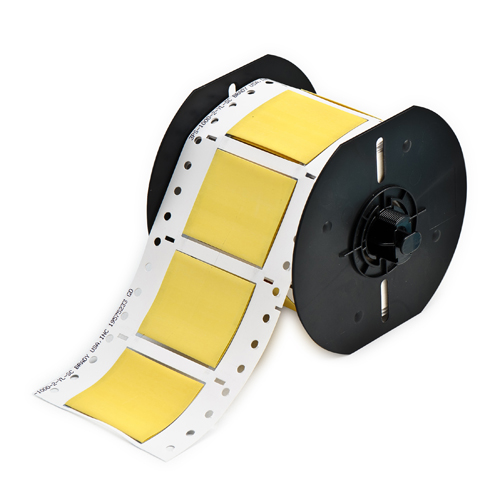

Brady B33D-1000-2-342YL - PermaSleeve Heat Shrink Wire and Cable Labels Double-sided for B33 Printers - 1" Dia x 2" Yellow

Manufacturer: Brady
Category: Wire & Cable Sleeves
Model # B33D-1000-2-342YL (142933)
Pemro # BDZ-6176

$ 655.99 See price in cart

Ships in 1 business day

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
Fade-resistant and smudge-proof for superior aesthetic appearance
Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
A ribbon is required to print this material. Use Part Number B30-R4300

Application: Electrical Labeling, Wire and Cable Labeling
Brand Name: Brady®
Color: Yellow
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized
Industry: Aerospace, Electrical, Voice & data communication
Industry Compliance: UL
Print Technology: Thermal Transfer
Printable Sides: Double-Side Printable
Printer and Label Applications: Wire & Cable
Printer Compatibility: BBP33, i3300, i5300, i4311
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 250
Quantity per Row: 1
Recommended Ribbon: B30-R4300
Recommended Ribbon Series: R4300, R4500RD, R4502S, R5000, R6600, R6700
Ribbon Series: B30-R4300
Sleeve Slits: No
Smart Cell: Yes
Trade Name: PermaSleeve®
Label Properties: Heat Shrink
Material Properties: Flame-retardant, Heat-shrinkable
Approval/Compliance (EMEA): UL Recognised to UL224, SAE-AMS-DTL-23053/5 C (Class 1), SAE AS-81531
Brady Material Number: B-342
Finish: Matte
Material: Heat-shrink Polyolefin
Material Type: Polyolefin
Maximum Service Temperature (°C): 135 °C
Maximum Service Temperature (°F): 275 °F
Minimum Service Temperature (°C): -55 °C
Minimum Service Temperature (°F): -67 °F
Service Temperature Range (°C): -55 °C - 135 °C
Service Temperature Range (°F): -67 °F - 275 °F
Shrink Ratio: 3:1
Diameter as Supplied (imperial): 1 in
Diameter as Supplied (metric): 25.40 mm
Dimensions (imperial): 1.66 in H x 2 in W x 1 in Dia
Dimensions (metric): 50,80 mm (W) x 42,16 mm (H)
Height (imperial): 1.66 in
Height (metric): 42.16 mm
Maximum Wire Diameter (imperial): 0.95 in
Maximum Wire Diameter (metric): 24.13 mm
Maximum Wire Gauge: 500 MCM
Minimum Wire Diameter (imperial): 0.333 in
Minimum Wire Diameter (metric): 8.46 mm
Minimum Wire Gauge: 2 AWG
Recovered Diameter (imperial): 0.375 in
Recovered Diameter (metric): 9.53 mm
Recovered Wall Thickness (imperial): 0.036 in
Recovered Wall Thickness (metric): 0.91 mm
Roll Width (imperial): 2 in
Roll Width (metric): 50.80 mm
Sleeve Size (imperial): 1 in Dia x 2 in W
Sleeve Size (metric): 25.40 mm Dia x 50.80 mm W
Sleeve Width (imperial): 2 in
Sleeve Width (metric): 50.80 mm
Vertical Repeat (imperial): 2 in
Vertical Repeat (metric): 50.80 mm
Web Width (imperial): 3.49 in
Web Width (metric): 88.65 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
Wire Diameter Range (imperial): 0.333 in - 0.95 in
Wire Diameter Range (metric): 8.46 mm to 24.13 mm
Wire Gauge Range: 2 AWG - 500 MCM
EU RoHS Compliant: Yes
CA Prop 65 Warning: Cancer risk from exposure to Antimony Trioxide. See www.P65Warnings.ca.gov
