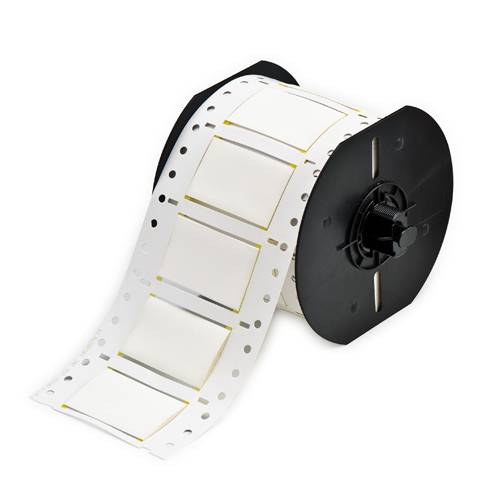

Brady B33D-750-2-345 - B33 Series PermaSleeve High Temp PVDF Wire Marking Sleeves, 0.75" Dia x 2" W, White, Roll of 250

Manufacturer: Brady
Category: Wire & Cable Sleeves
Model # B33D-750-2-345 (142985)
Pemro # BDZ-6224

$ 1,489.00 See price in cart

Ships in 1 business day

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)
A ribbon is required to print this material. Use Part Number B30-R6000

Application: Electrical Labeling, Temperature Indicating Labeling, Wire and Cable Labeling
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202G, NASA SP-R-0022A, SAE-AMS-DTL-23053, SAE-AS-81531
Industry: Aerospace, Electrical, Mass transit, Voice & data communication
Industry Compliance: MIL-STD
Print Technology: Thermal Transfer
Printable Sides: Double-Side Printable
Printer and Label Applications: Wire & Cable
Printer Compatibility: BBP33, i3300, i5300, i4311
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 250
Quantity per Row: 1
Recommended Ribbon: B30-R6000
Recommended Ribbon Series: R6000HF
Ribbon Series: B30-R6000
Sleeve Slits: No
Smart Cell: Yes
Trade Name: PermaSleeve®
Average Outdoor Durability: 2 Years
Label Properties: Heat Shrink
Material Properties: Flame-retardant, Heat-shrinkable
Approval/Compliance (EMEA): NASA SP-R-0022A Outgassing Performance, SAE-AMS-DTL-23053/18 (Class 2), SAE AS-81531, MIL-STD-202 Method 215K
Brady Material Number: B-345
Finish: Matte
Indoor or Outdoor Use: Outdoor Use
Material: High Temperature Heat-shrink Polyvinylidene Fluoride
Material Type: Polyvinylidene
Maximum Service Temperature (°C): 225 °C
Maximum Service Temperature (°F): 437 °F
Minimum Service Temperature (°C): -55 °C
Minimum Service Temperature (°F): -67 °F
Service Temperature Range (°C): -55 °C - 225 °C
Service Temperature Range (°F): -67 °F - 437 °F
Shrink Ratio: 2:1 (3:1 for 0.094" Dia)
Diameter as Supplied (imperial): 0.75 in
Diameter as Supplied (metric): 19.05 mm
Dimensions (imperial): 1.25 in H x 2 in W x 0.75 in Dia
Dimensions (metric): 50,80 mm (W) x 31,75 mm (H)
Height (imperial): 1.25 in
Height (metric): 31.75 mm
Maximum Wire Diameter (imperial): 0.7 in
Maximum Wire Diameter (metric): 17.78 mm
Maximum Wire Gauge: 0000 AWG
Minimum Wire Diameter (imperial): 0.375 in
Minimum Wire Diameter (metric): 9.53 mm
Minimum Wire Gauge: 2 AWG
Recovered Diameter (imperial): 0.375 in
Recovered Diameter (metric): 9.53 mm
Recovered Wall Thickness (imperial): 0.025 in
Recovered Wall Thickness (metric): 0.64 mm
Roll Width (imperial): 2 in
Roll Width (metric): 50.80 mm
Sleeve Size (imperial): 0.75 in Dia x 2 in W
Sleeve Size (metric): 19.05 mm Dia x 50.80 mm W
Sleeve Width (imperial): 2 in
Sleeve Width (metric): 50.80 mm
Vertical Repeat (imperial): 1.625 in
Vertical Repeat (metric): 41.28 mm
Web Width (imperial): 3.49 in
Web Width (metric): 88.65 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
Wire Diameter Range (imperial): 0.375 in - 0.7 in
Wire Diameter Range (metric): 9.53 mm to 17.78 mm
Wire Gauge Range: 2 AWG - 0000 AWG
EU RoHS Compliant: Yes
