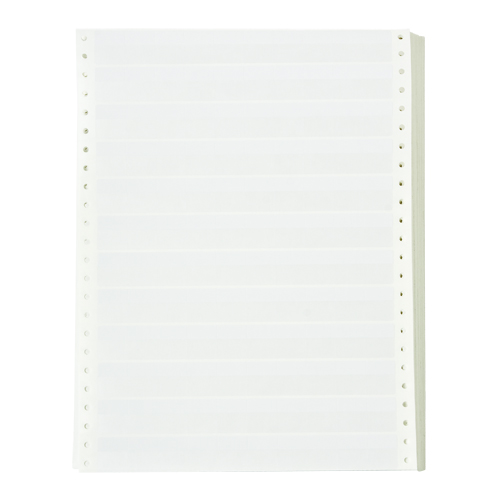

Brady DAT-148-292-10 - DATAB Self-Laminating Vinyl Lbls 0.937 in H x 0.8 in W White, Clear 10000/PK

Manufacturer: Brady
Category: Wire & Cable Labels
Model # DAT-148-292-10 (27348)
Pemro # BDW-6448

$ 797.99 See price in cart

Ships in 1 business day

Self-Laminating Vinyl (B-292) is a matte vinyl with a clear overlaminate to protect graphics against oil, water, and mild solvents.

Vinyl labels feature clear "trailer" that wraps to protect printed text
Flexible, self-extinguishing material conforms to most surfaces
Operating temperature of -40°F to 150°F (-40°C to 65.5°C)

Application: Wire and Cable Labeling
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM D 1000, ASTM D 2979, ASTM G 155
Layout: Fan-folded, Square Corners, Butt-cut
Lines per Inch: 6 lines per inch
Print Technology: Dot Matrix
Printer and Label Applications: Wire & Cable
Printer Compatibility: Dot Matrix Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 10
Recommended Ribbon Series: R5000
Ribbon Series: R2000, R5000
Shape: Rectangle
Total Quantity: 10000
Trade Name: DATAB®
Label Properties: Self Laminating & Wrap Around, Self-extinguishing
Material Properties: Flame-retardant, Self-laminating
Resistance Properties: Chemical-resistant, Humidity-resistant, Oil-resistant, Water-resistant, Weather-resistant
Surface: For smooth surfaces
Adhesive Type: Permanent Acrylic
Brady Material Number: B-292
Compatible Surface Types: General
Finish: Matte
Indoor or Outdoor Use: Outdoor Use
Material: Self-laminating Vinyl
Material Type: Vinyl
Maximum Service Temperature (°C): 70 °C
Maximum Service Temperature (°F): 158 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 70 °C
Service Temperature Range (°F): -40 °F - 158 °F
Thickness (imperial): 0.004 in
Thickness (metric): 0.102 mm
Dimensions (imperial): 0.937 in H x 0.8 in W
Dimensions (metric): 20,32 mm (W) x 23,80 mm (H)
Height (imperial): 0.937 in
Height (metric): 23.80 mm
Horizontal Repeat (imperial): 0.8 in
Horizontal Repeat (metric): 20.32 mm
Label/Tape Size (imperial): 0.937 in H x 0.8 in W
Label/Tape Size (metric): 23.80 mm H x 20.32 mm W
Maximum Wire Diameter (imperial): 0.18 in
Maximum Wire Diameter (metric): 4.57 mm
Maximum Wire Gauge: 8 AWG
Minimum Wire Diameter (imperial): 0.09 in
Minimum Wire Diameter (metric): 2.29 mm
Minimum Wire Gauge: 18 AWG
Printable Area Dimensions (imperial): 0.375 in H x 0.8 in W
Printable Area Dimensions (metric): 20.32 mm W x 9.53 mm H
Printable Area Height (imperial): 0.375 in
Printable Area Height (metric): 9.53 mm
Printable Area Width (imperial): 0.8 in
Printable Area Width (metric): 20.32 mm
Vertical Repeat (imperial): 1 in
Vertical Repeat (metric): 25.40 mm
Web Width (imperial): 9 in
Web Width (metric): 228.60 mm
Width (imperial): 0.8 in
Width (metric): 20.32 mm
Wire Diameter Range (imperial): 0.09 in - 0.18 in
Wire Diameter Range (metric): 2.29 mm to 4.57 mm
Wire Gauge Range: 18 AWG - 8 AWG
EU RoHS Compliant: Yes
