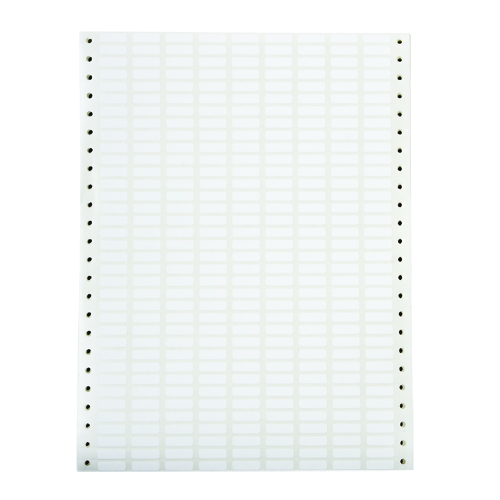

Brady DAT-27-619-10 - DATAB Matte Polyester Lbls 0.25 in H x 0.75 in W White 10000/PK

Manufacturer: Brady
Category: Miscellaneous
Model # DAT-27-619-10 (28980)
Pemro # BDW-6508

$ 425.99 See price in cart

Ships in 1 business day

Permanent Polyester (B-619) is suitable for marking components in control panels, electronic components and circuit boards, faceplates and electrical receptacles.

Leaves no adhesive residue when removed, so it's ideal for permanent or temporary applications
Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
Shelf life is two years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH
Good smudge and solvent resistance in temperatures of -94 to 293° F (-70 to 145° C)

After Process: Yes, this material will work with this application
Application: Asset Tracking, Circuit Board Labeling, Electrical Labeling, General Identification, Component and Equipment Labeling
Board Application: Through Hole Technology - Top, After Process
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, CSA Approved, UL Recognized
Layout: Fan-folded, Radius Corners
Lines per Inch: 6 lines per inch
Print Technology: Dot Matrix
Printer and Label Applications: Circuit Board
Printer Compatibility: Dot Matrix Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 9
Recommended Ribbon Series: R5000
Ribbon Series: R2000, R5000
Shape: Rectangle
Surface Mount Technology SMT: No, this material does not work with this application
Through Hole Technology: Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No
Total Quantity: 10000
Trade Name: DATAB®
Label Properties: Heat Resistant, Permanent Adhesive
Resistance Properties: Abrasion-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant
Surface: For smooth surfaces
Adhesive Type: Permanent Acrylic
Brady Material Number: B-619A
Compatible Surface Types: High Surface Energy
Finish: Matte
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 145 °C
Maximum Service Temperature (°F): 293 °F
Minimum Application Temperature (°C): 10 °C
Minimum Application Temperature (°F): 50 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 145 °C
Service Temperature Range (°F): -94 °F - 293 °F
Thickness (imperial): 0.0034 in
Thickness (metric): 0.086 mm
Dimensions (imperial): 0.25 in H x 0.75 in W
Dimensions (metric): 19,05 mm (W) x 6,35 mm (H)
Height (imperial): 0.25 in
Height (metric): 6.35 mm
Horizontal Repeat (imperial): 0.9 in
Horizontal Repeat (metric): 22.86 mm
Label/Tape Size (imperial): 0.25 in H x 0.75 in W
Label/Tape Size (metric): 6.35 mm H x 19.05 mm W
Vertical Repeat (imperial): 0.333 in
Vertical Repeat (metric): 8.46 mm
Web Width (imperial): 9 in
Web Width (metric): 228.60 mm
Width (imperial): 0.75 in
Width (metric): 19.05 mm
EU RoHS Compliant: Yes
