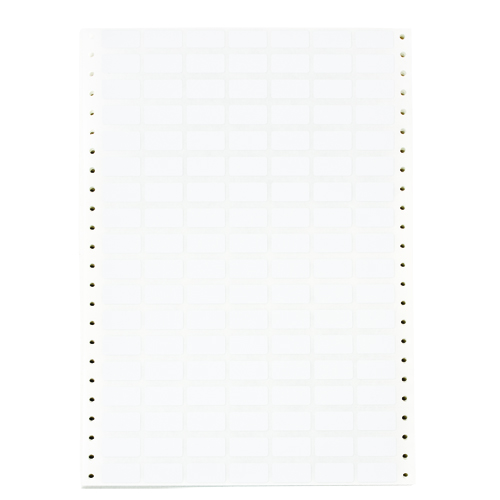

Brady DAT-57-637-10 - DATAB Polyvinyl Fluoride Lbls 0.5 in H x 1 in W White 10000/PK

Manufacturer: Brady
Category: Labels & Markers
Model # DAT-57-637-10 (28921)
Pemro # BDL-4218

$ 1,609.00 See price in cart

Available to Order

Self-Extinguishing B-637 is designed for cable and wire bundle identification and label applications where self-extinguishing properties are required.

Matte finish material with permanent acrylic adhesive can be dot matrix printed
Judged to be self-extinguishing by laboratory testing and exhibits good solvent and heat resistance
Meets MIL-M-87958 requirements
Service temperature of -94°F to 275°F (-70°C to 135°C)

After Process: Yes, this material will work with this application
Application: Circuit Board Labeling, Component and Equipment Labeling, Wire and Cable Labeling
Board Application: Through Hole Technology - Top, After Process
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, MIL-M-87958
Layout: Fan-folded, Radius Corners
Lines per Inch: 6 lines per inch
Print Technology: Dot Matrix
Printer and Label Applications: Wire & Cable
Printer Compatibility: Dot Matrix Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 7
Recommended Ribbon Series: R5000
Ribbon Series: R2000, R5000
Shape: Rectangle
Surface Mount Technology SMT: No, this material does not work with this application
Through Hole Technology: Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No
Total Quantity: 10000
Trade Name: DATAB®
Label Properties: Self Laminating & Wrap Around, Self-extinguishing
Material Properties: Flame-retardant
Resistance Properties: Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Heat-resistant, Humidity-resistant, UV-resistant, Weather-resistant
Surface: For smooth surfaces
Adhesive Type: Permanent Acrylic
Brady Material Number: B-637
Compatible Surface Types: General
Finish: Matte
Indoor or Outdoor Use: Outdoor Use
Material: Polyvinylfluoride
Material Type: Polyvinylfluoride
Maximum Service Temperature (°C): 135 °C
Maximum Service Temperature (°F): 275 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 135 °C
Service Temperature Range (°F): -94 °F - 275 °F
Thickness (imperial): 0.0036 in
Thickness (metric): 0.091 mm
Dimensions (imperial): 0.5 in H x 1 in W
Dimensions (metric): 25,40 mm (W) x 12,70 mm (H)
Height (imperial): 0.5 in
Height (metric): 12.70 mm
Horizontal Repeat (imperial): 1.1 in
Horizontal Repeat (metric): 27.94 mm
Label/Tape Size (imperial): 0.5 in H x 1 in W
Label/Tape Size (metric): 12.70 mm H x 25.40 mm W
Maximum Wire Diameter (imperial): 0.16 in
Maximum Wire Diameter (metric): 4.06 mm
Minimum Wire Diameter (imperial): 0.06 in
Minimum Wire Diameter (metric): 1.52 mm
Vertical Repeat (imperial): 0.667 in
Vertical Repeat (metric): 16.94 mm
Web Width (imperial): 8.6 in
Web Width (metric): 218.44 mm
Width (imperial): 1 in
Width (metric): 25.40 mm
Wire Diameter Range (imperial): 0.06 in - 0.16 in
Wire Diameter Range (metric): 1.52 mm to 4.06 mm
EU RoHS Compliant: Yes
