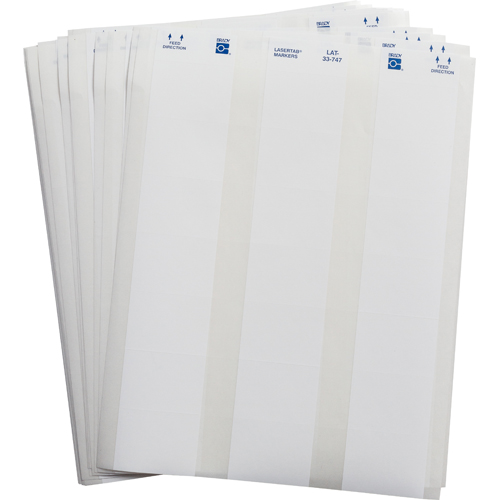

Brady LAT-33-747-1 - LaserTab Polyester Lbls 1.437 in H x 2 in W White 56/PK

Manufacturer: Brady
Category: Laser Labels
Model # LAT-33-747-1 (29694)
Pemro # BDW-7102

$ 279.99 See price in cart

Ships in 1 business day

Laser printable Permanent Polyester (B-747A) is recommended for alphanumeric and barcode applications and works well on the topside of most circuit boards and IC's.

Polyester film with an acrylic pressure sensitive adhesive and a printable coating formulated specially for laser printers and toners
High resolution, good solvent and smudge resistance, moderate to high temperature performance
Shelf life is two years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH
Service temperature of -40°F to 267°F (-40°C to 130°C)

Application: Asset Tracking, Component and Equipment Labeling, Data and Telecommunications Labeling, General Identification
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, CSA Approved, UL Recognized
Layout: Multiple labels across, Butt-cut
Print Technology: Laser Printing
Printer and Label Applications: Circuit Board, General Identification, Rating & Name Plates
Printer Compatibility: Laser Printers
Printer supply or Pre-printed: Printer supply
Quantity per Card or Sheet: 18
Quantity per Row: 3
Shape: Rectangle
Total Quantity: 1008
Trade Name: LaserTab®
Label Properties: Permanent Adhesive
Material Properties: Laser Toner-receptive
Surface: For smooth surfaces
Adhesive Type: Permanent Acrylic
Brady Material Number: B-747A
Compatible Surface Types: High Surface Energy
Finish: Matte
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 130 °C
Maximum Service Temperature (°F): 266 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 130 °C
Service Temperature Range (°F): -40 °F - 266 °F
Thickness (imperial): 0.0035 in
Thickness (metric): 0.090 mm
Dimensions (imperial): 1.437 in H x 2 in W
Dimensions (metric): 50,80 mm (W) x 36,50 mm (H)
Height (imperial): 1.437 in
Height (metric): 36.50 mm
Horizontal Repeat (imperial): 2.8 in
Horizontal Repeat (metric): 71.12 mm
Label/Tape Size (imperial): 1.437 in H x 2 in W
Label/Tape Size (metric): 36.50 mm H x 50.80 mm W
Left Margin (imperial): 0.3 in
Left Margin (metric): 7.62 mm
Printable Area Dimensions (imperial): 1.437 in H x 2 in W
Printable Area Dimensions (metric): 50.80 mm W x 36.50 mm H
Printable Area Height (imperial): 1.437 in
Printable Area Height (metric): 36.50 mm
Printable Area Width (imperial): 2 in
Printable Area Width (metric): 50.80 mm
Sheet Height (imperial): 11 in
Sheet Height (metric): 279.40 mm
Sheet Width (imperial): 8.5 in
Sheet Width (metric): 215.90 mm
Top Margin (imperial): 0.88 in
Top Margin (metric): 22.23 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
EU RoHS Compliant: Yes
