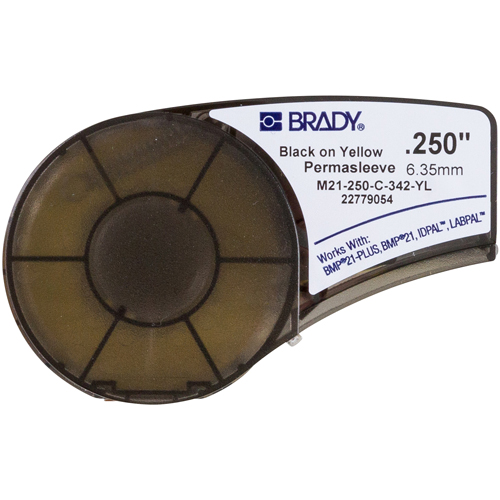

Brady M21-250-C-342-YL - PermaSleeve® Heat-Shrink Wire and Cable Labels 0.25 in Dia x 7 ft L BK/YL

Manufacturer: Brady
Category: Wire & Cable Sleeves
Model # M21-250-C-342-YL (139752)
Pemro # BDL-4503

$68.99 $ 67.12/each

Ships in 1 business day

Designed for rigorous wire marking applications, PermaSleeve® PS Heat Shrink Polyolefin (B-342) sleeves combine speed, ease of use, and permanence to create high quality labeling.

Industrial Grade – Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
Superior Aesthetics – Crisp, clear identification resistant to abrasions and fading
Certifications – UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
3:1 heat shrinking sleeve designed for 16 - 8 gauge (diameter 0.094 - 0.215 inches, 2.4 - 5.5 mm)
For material specific performance and properties, please refer to the Technical Data Sheet (TDS)

Application: Electrical Labeling, Wire and Cable Labeling
Brand Name: Brady®
Color: Black on Yellow
Continuous or Die-cut: Continuous
Enables Industry Compliance (North America): ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized
Industry Compliance: UL
Print Technology: Thermal Transfer
Printer and Label Applications: Wire & Cable
Printer Compatibility: M210, M210-LAB, M211, BMP21-PLUS, BMP21, BMP21-LAB, IDPAL, LABPAL
Printer supply or Pre-printed: Printer supply
Ribbon Series: R4300
Smart Cell: Yes
Trade Name: PermaSleeve®
Label Properties: Heat Shrink
Material Properties: Flame-retardant, Heat-shrinkable
Approval/Compliance (EMEA): UL Recognised to UL224, SAE-AMS-DTL-23053/5 C (Class 1), SAE AS-81531
Brady Material Number: B-342
Finish: Matte
Material: Heat-shrink Polyolefin
Material Type: Polyolefin
Maximum Service Temperature (°C): 135 °C
Maximum Service Temperature (°F): 275 °F
Minimum Service Temperature (°C): -55 °C
Minimum Service Temperature (°F): -67 °F
Service Temperature Range (°C): -55 °C - 135 °C
Service Temperature Range (°F): -67 °F - 275 °F
Shrink Ratio: 3:1
Diameter as Supplied (imperial): 0.25 in
Diameter as Supplied (metric): 6.35 mm
Dimensions (imperial): 0.439 in H x 0.25 in Dia x 7 ft L
Dimensions (metric): 11,15 mm (H) x 2,13 m (L)
Height (imperial): 0.439 in
Height (metric): 11.15 mm
Length (imperial): 7 ft
Length (metric): 2.13 m
Maximum Wire Diameter (imperial): 0.215 in
Maximum Wire Diameter (metric): 5.46 mm
Maximum Wire Gauge: 8 AWG
Minimum Wire Diameter (imperial): 0.094 in
Minimum Wire Diameter (metric): 2.39 mm
Minimum Wire Gauge: 16 AWG
Recovered Diameter (imperial): 0.093 in
Recovered Diameter (metric): 2.36 mm
Roll Length (imperial): 7 ft
Roll Length (metric): 2.13 m
Sleeve Size (imperial): 0.25 in Dia x 7 ft L
Sleeve Size (metric): 6.35 mm Dia x 2.13 m L
Wire Diameter Range (imperial): 0.094 in - 0.215 in
Wire Diameter Range (metric): 2.39 mm to 5.46 mm
Wire Gauge Range: 16 AWG - 8 AWG
EU RoHS Compliant: Yes
CA Prop 65 Warning: Cancer risk from exposure to Antimony Trioxide. See www.P65Warnings.ca.gov
