Brady M510-LAB - M510 Portable Label Printer with Laboratory ID Software and Accessories Kit
Cannot Ship Air
- Manufacturer: Brady
- Category: Label Printers
- Model # M510-LAB
- Pemro # BDY-100023
- $599.99 $ 558.13/each
-
Available to Order
The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do. Kit includes Brady Workstation Design and Print Pro — Product and Wire ID Software and a magnet.
- Create large 1.5" labels with edge-to-edge printing and a wide range of text sizes
- Print up to 1.5" per second to get work done faster
- Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
- Backlit full-color LCD graphics display for easier labeling in low-lit areas
- Durably designed to withstand 4' drops
- The high-capacity Li-ION battery prints 4400 labels on a single charge for all-day power
- NOTICE: Brady North America is not authorized to ship this item via air or to Alaska or Hawaii. Please contact your local distributor.
Barcode Symbologies - Yes/No: Yes
Batteries Included: Yes
Battery Type: Rechargeable Lithium-ion Battery
Brand Name: Brady®
Built-In Label Wizards: 66 Block, Breaker Box, DesiStrip, Flags, General, Patch Panel, Terminal Block, Wire Wrap, Face Plate, Vial
Calibration Required?: Automated through Smart Cell
Charging Times: Charging over battery charger (0 - 100%) 4h
Color: Blue, Gray
Color Printing Capability: Single Color
Compatible Media: M4-, M4C-, M5-, M5C-
Connectivity Options: USB
Custom Labels Available: No
Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention
Device Connectivity: PC connected, Stand-alone
Device Drop Test & Durability: Resistant to 4-foot drops
Display Resolution: 320 x 240 pixels
Display Type: Color LCD Screen, LCD backlit graphics display
Enables Industry Compliance (North America): FCC Part 15 Class A
Font Styles: Brady Alpine, Brady Fixed Width

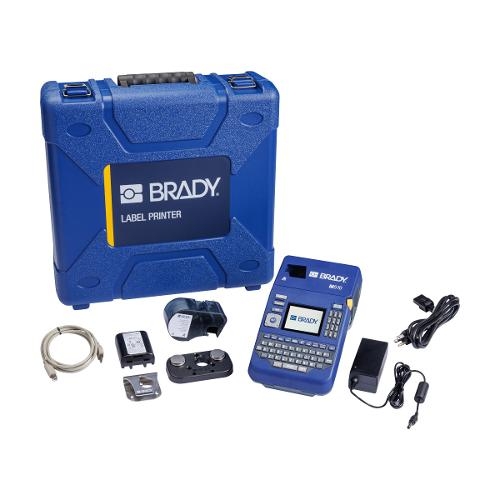

Includes: (1) M510 Printer, (1) Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK), (1) Rechargeable Li-ion Battery Pack (M-LION-BATTERY), (1) AC Adapter (M41-51-61-AC), (1) Quick Start Guide, (1) Brady Workstation Design & Print Pro Insert, (1) USB Cable (M-USB-103788), (1) Hard Case (M510-HC), (1) Magnet (M51-MAGNET), (1) Utility Hook (M51-HOOK), (1) USB Flash Drive with Driver and User Manual
Keyboard Type: QWERTY
Label Colors: Black on Blue, Black on Clear, Black on Gray, Black on Green, Black on Orange, Black on Red, Black on White, Black on Yellow, Red on White, White on Black, White on Blue, White on Clear, White on Green, White on Red
Label Retention Feature: Yes
Media Format: Media and Ribbon in Cartridge, supplied together
Memory: 512 MB RAM, 256 MB Flash
Number of Stock Parts: 250+ standard parts
Number of Symbols: 480
On Screen Indicators: Battery Life, Supply Remaining
Plug Type: US
Power Source: AC Adaptor, Rechargeable Battery
Print Resolution: 300 dpi
Print Rotation: Yes
Print Technology: Thermal Transfer
Printer & Device Model Name: M510
Printer and Label Applications: Circuit Board, Datacom, Electrical, General Identification, Hazardous Materials, Inspection Repair, Laboratory, Lean / 5S, Pipe Marker, Rating & Name Plates, Safety, Wire & Cable
Printer Category: Portable
Programming Language: Brady Script Emulator for ZPL (Accessory required)
Recharge Time: 4 hours
Serialization: Simple & Simultaneous & Single Advanced & Multiple Advanced
Smart Cell: Yes
Software Compatibility: Brady Workstation
Software Package: Laboratory ID
Special Characters Quantity: 123
Symbols Categories: Arrows, CLP/GHS, Datacomm, Electrical, Exit, Fire Safety, First Aid, Greek, Home Electrical, HSID, International, ISO Graphics, Laboratory, Mandatory, Miscellaneous, Packaging, Personal Protective Equipment, Prohibition, Public Info, Safety, Warning, WHMIS
Trade Name: M510
User Interface Type: Full QWERTY Keyboard, PC
Warranty (APAC): 1 Year
Warranty (EMEA): 2 Years
Warranty (North America): 2 Years
Label Material Types: BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper
Materials Supported: Continuous, Die-cut
Battery mAh Rating: 2700 mAh
Battery Weight (imperial): 0.93 lb
Battery Weight (metric): 424.84 g
Depth (imperial): 10 in
Depth (metric): 254.00 mm
Dimensions (imperial): 3.75 in H x 5.75 in W x 10 in D
Dimensions (metric): 146,05 mm (W) x 95,25 mm (H) x 254,00 mm (D)
Display Size (imperial): 2.8 in
Display Size (metric): 71.12 mm
Font Sizes: 4 - 170 pt
Height (imperial): 3.75 in
Height (metric): 95.25 mm
Maximum Label/Tape Width (imperial): 1.5 in
Maximum Label/Tape Width (metric): 38.10 mm
Maximum Labels per Day: 1000
Maximum Liner Width (imperial): 1.8 in
Maximum Liner Width (metric): 45.72 mm
Maximum Print Speed (imperial): 1.5 in/s
Maximum Print Speed (metric): 38.10 mm/s
Maximum Print Width (imperial): 1.44 in
Maximum Print Width (metric): 36.58 mm
Maximum Printed Label Length (imperial): 39 in
Maximum Printed Label Length (metric): 99.06 cm
Minimum Label Height (imperial): 0.236 in
Minimum Label Height (metric): 5.99 mm
Minimum Label Length (imperial): 0.24 in
Minimum Label Length (metric): 6.10 mm
Minimum Label Width (imperial): 0.235 in
Minimum Label Width (metric): 5.97 mm
Minimum Liner Width (imperial): 0.813 in
Minimum Liner Width (metric): 20.65 mm
Operating Humidity Range: 20%-90% (non-condensing)
Operating Temperature Range (°C): 4°C - 43°C
Operating Temperature Range (°F): 40°F - 110°F
Power Supply Voltage: 110 - 240 V
Storage Humidity Range: 10%-90% (non-condensing)
Storage Temperature Range (°C): -18°C - 43°C
Storage Temperature Range (°F): 0°F - 110°F
Weight (imperial): 3.05 lb
Weight (metric): 1.38 kg
Width (imperial): 5.75 in
Width (metric): 146.05 mm
EU RoHS Compliant: Yes
CA Prop 65 Warning: Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov
