Brady PS-187-2-WT-SC (114578) - PermaSleeve Wire Marking Sleeves-1" Core

Brady PS-187-2-WT-SC (114578)
  • Manufacturer: Brady
  • Category: Wire & Cable Sleeves
  • Model # PS-187-2-WT-SC (114578)
  • Pemro # BDZ-1904
  • $ 933.99 See price in cart
  • Available to Order
Add to List

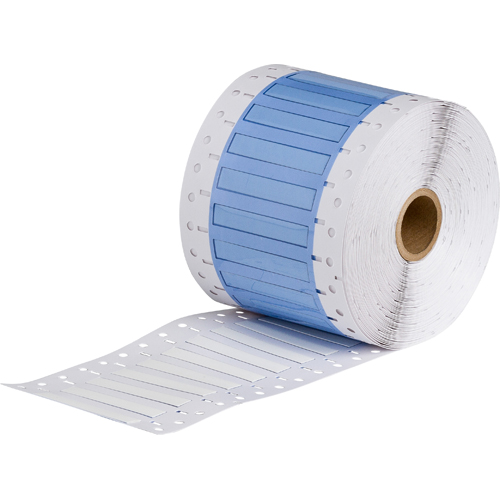

PermaSleeve® Wire Marking Sleeves - 1" Core, 1,000/Package

Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.
These labels are on a 1" core, a 'smaller core' than the majority of our materials. The recommended printer for these small core parts is the BBP11-34L printer.

Specifications:
Application: Wire & Cable Marking, Panel Identification
Color: White
Adhesive: None
Agency Approval(s)/Compliance: SAE-DTL-23053/5 Class 1, SAE-AS-81531, MIL-STD-202, UL Recognized
Brady Material Number: B-342
Finish: Matte
Height (in): 0.335"
Height (mm): 8.510 mm
Label Type/Style: Sleeve
Material Description: PermaSleeve® Heat-Shrink Polyolefin
Material Type: Polyolefin
Panel Application: Wire & Cable Marking
Printable Sides: One-Sided Printable
Printer Compatibility: BBP11, Brady 1244, Brady 1344
Range of Wire Diameter (in): 0.062" - 0.150"
Range of Wire Diameter (mm): 1.57 mm - 3.81 mm
Recommended Ribbon Series: The Brady R6600 Series and R4300 Series black ribbons are recommended for best thermal transfer print performance. The Brady R4502S silver ribbon and the R6700 Series white ribbons are recommended for thermal transfer printing of black markers. The Brady R5000 Series high performance ribbon is recommended for best dot matrix print performance.
Shrink Ratio: 3-to-1
Special Properties: 1" Core
Suggested Ribbon Part#: R6613
Vertical Repeat: 0.625" (15.88 mm)
Width (in): 2.000"
Width (mm): 50.800 mm
Wire Gauge: 20 to 10
