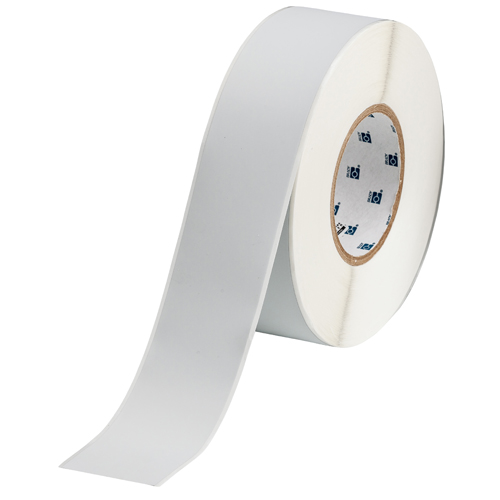

Brady THT-106-428 - Metallized Polyester Rating Plate and PCB Labels 2 in W x 300 ft L Light Gray

Manufacturer: Brady
Category: Printer Tapes & Labels
Model # THT-106-428 (18832)
Pemro # BDW-9595

$ 359.99 See price in cart

Ships in 1 business day

Metallized Polyester (B-428) labels are designed for applications that use barcodes, alphanumerics, graphic symbols and logos and require nameplate-like quality.

Matte, light gray finish gives labels a rating and serial plate appearance
Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
UL approved;CSA accepted
Service temperature of -40 to 248° F (-40 to 120° C)
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
This metallized label roll is supplied on a 3 inch core that has a thicker 0.66 inch wall to enable addition of i75-smart functionality.
If used in any other 3 inch core printer this roll will function as a manual roll
A ribbon is required to print this material. Use Part Number IP-R4300 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R4300 for a different printer

Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling
Color: Light Gray
Continuous or Die-cut: Continuous
Enables Industry Compliance (North America): Halogen Free (DIN VDE 0472 Part 815)
Industry Compliance: CSA, UL
Printer and Label Applications: General Identification, Inspection Repair, Rating & Name Plates
Printer Compatibility: BBP81, i6100, i7100, i7500, PR Plus, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 1
Recommended Ribbon: i75-R4300, IP-R4300, R4300
Recommended Ribbon Series: R4300, R4500, R6200
Smart Cell: No
Total Quantity: 90000 ft
Trade Name: MetaLabel
Average Outdoor Durability: Not Recommended
Material Properties: Metallic Appearance
Adhesive Type: Permanent Acrylic
Approval/Compliance (EMEA): UL Recognised, CSA Accepted, AGA Approved, Halogen Free (DIN VDE 0472/part 815)
Brady Material Number: B-428
Compatible Surface Types: High Surface Energy
Finish: Matte
Material: Metallized Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 120 °C
Maximum Service Temperature (°F): 248 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 120 °C
Service Temperature Range (°F): -40 °F - 248 °F
Thickness (imperial): 0.0047 in
Thickness (metric): 0.122 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 2 in W x 300 ft L
Dimensions (metric): 50,80 mm (W) x 91,44 m (L)
Label/Tape Size (imperial): 2 in W x 300 ft L
Label/Tape Size (metric): 50.80 mm W x 91.44 m L
Length (imperial): 300 ft
Length (metric): 91.44 m
Roll Length (imperial): 300 ft
Roll Length (metric): 91.44 m
Roll Width (imperial): 2 in
Roll Width (metric): 50.80 mm
Web Width (imperial): 2.2 in
Web Width (metric): 55.88 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
EU RoHS Compliant: Yes
