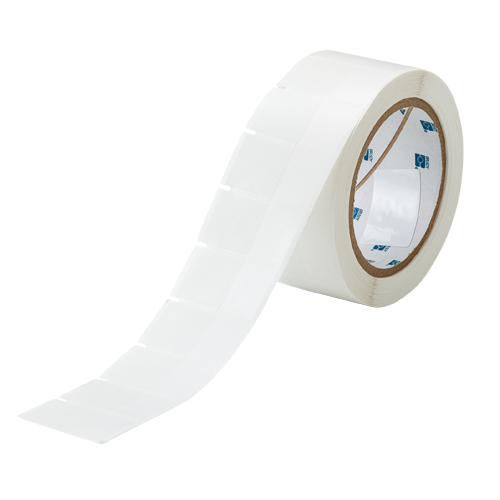

Brady THT-183-461-1 - Self-Laminating Cryogenic Polyester Labels for 3" Core Printers 1.75" x 1"

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THT-183-461-1 (105124)
Pemro # BDX-8535

$ 191.99 See price in cart

Ships in 1 business day

Protect printing in cryogenic and autoclave conditions with B-461 Self-Laminating Cryogenic Polyester Labels. Print text, barcodes and graphics, then cover with clear film.

Specialized – Clear overlaminate protects text and barcodes on vials, centrifuge tubes, test tubes straws and slides from liquid nitrogen to autoclaves
Durable – Labels withstand solvents, smudges and extreme temps from -320° to 266°F (-196° to 130°C)
Adhesive – Made with a permanent acrylic adhesive for tight bonding onto smooth surfaces like glass, stainless steel and copper
Certifications – RoHS compliant to 2011/65/EU and 2015/863, for material specific performance and properties, please refer to the Technical Data Sheet (TDS)
A ribbon is required to print this material. Use Part Number IP-R4302 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R4302 for a different printer
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated. Contact Brady tech support for further information.
If used in any other 3 inch core printer this roll will function as a manual roll

Application: Laboratory Labeling
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000
Format: IP™ Enabled
Industry: Laboratory
Lab Application: Slides, Tubes, Vials, Cryo Vials, Cryo Tubes
Printer and Label Applications: Laboratory
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 1000
Quantity per Row: 1
Recommended Ribbon: i75-R4302, IP-R4302, R4302
Recommended Ribbon Series: R4300, R4500, R6200
Ribbon Series: R4300, R7950
Shape: Rectangle
Smart Cell: No
Total Quantity: 1000
Lab Environment: Autoclave, Freezer, Hot Water Bath (100°C), Liquid Nitrogen
Label Properties: Permanent Adhesive, Self Laminating & Wrap Around, Self Laminating & Wrap Around
Material Properties: Autoclavable, Cryogenic storage
Adhesive Type: Permanent Acrylic
Brady Material Number: B-461
Compatible Surface Types: High Surface Energy
Finish: Matte
Material: Self-laminating Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 110 °C
Maximum Service Temperature (°F): 230 °F
Minimum Service Temperature (°C): -196 °C
Minimum Service Temperature (°F): -321 °F
Service Temperature Range (°C): -196 °C - 110 °C
Service Temperature Range (°F): -321 °F - 230 °F
Thickness (imperial): 0.0019 in
Thickness (metric): 0.048 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 1 in H x 1.75 in W
Dimensions (metric): 44,45 mm (W) x 25,40 mm (H)
Height (imperial): 1 in
Height (metric): 25.40 mm
Label/Tape Size (imperial): 1 in H x 1.75 in W
Label/Tape Size (metric): 25.40 mm H x 44.45 mm W
Printable Area Dimensions (imperial): 1 in H x 1 in W
Printable Area Dimensions (metric): 25.40 mm W x 25.40 mm H
Printable Area Height (imperial): 1 in
Printable Area Height (metric): 25.40 mm
Printable Area Width (imperial): 1 in
Printable Area Width (metric): 25.40 mm
Vertical Repeat (imperial): 1.125 in
Vertical Repeat (metric): 28.58 mm
Vial/Tube Size (metric): 2.0 mL
Web Width (imperial): 1.825 in
Web Width (metric): 46.36 mm
Width (imperial): 1.75 in
Width (metric): 44.45 mm
EU RoHS Compliant: Yes
