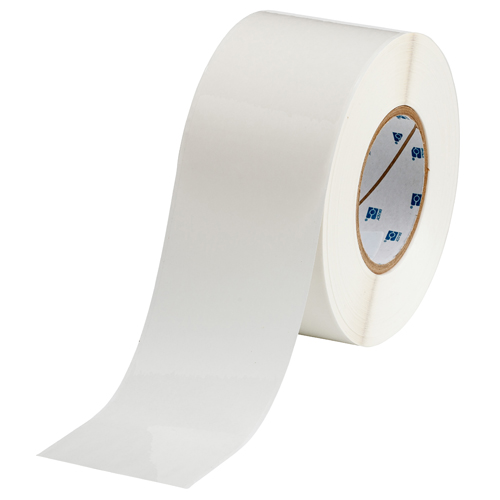

Brady THT-21-430 - Harsh Environment Multi-Purpose Clear Polyester Continuous Labels for 3" Core Printers - 3"

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THT-21-430 (30207)
Pemro # BDW-9799

$ 362.99 See price in cart

Ships in 1 business day

Clear Polyester (B-430) labels are designed for applications that use barcodes, alphanumerics, graphic symbols and logos and require nameplate-like quality.

Glossy, clear labels are thermal transfer printable and feature a durable permanent acrylic adhesive.
Excellent resistance to most chemicals, oils and water with a service temperature of -70 to 100° F (-56 to 137° C)
UL approved;CSA accepted
If using this part in an IP series printer or i5100 printer, white print ribbon is not recommended
A ribbon is required to print this material. Use Part Number IP-R6002 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6002 for a different printer
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated. Contact Brady tech support for further information.
If used in any other 3 inch core printer this roll will function as a manual roll

Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, General Identification, Inventory and Inspection Labeling
Color: Clear
Continuous or Die-cut: Continuous
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, CSA Approved, UL Recognized
Format: IP™ Enabled
Industry Compliance: CSA, UL
Lab Application: Bottles, Dishes, Flasks, General Laboratory Identification
Printer and Label Applications: General Identification, Inspection Repair, Rating & Name Plates
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 1
Recommended Ribbon: i75-R6002, IP-R6002, R6002
Recommended Ribbon Series: R4400, R4900, R6000HF, R6200
Ribbon Series: R6000HF
Smart Cell: No
Total Quantity: 90000 ft
Trade Name: WorkHorse®
Average Outdoor Durability: Not Recommended
Lab Environment: Autoclave, Freezer
Material Properties: Autoclavable, Optically Clear
Performance Characteristics: Abrasion resistance, Fuel/Oil resistance, High heat resistance, Low temperature resistance
Adhesive Type: Permanent Acrylic
Approval/Compliance (EMEA): UL Recognised, CSA Accepted
Brady Material Number: B-430
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 100 °C
Service Temperature Range (°F): -94 °F - 212 °F
Thickness (imperial): 0.003 in
Thickness (metric): 0.076 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 3 in W x 300 ft L
Dimensions (metric): 76,20 mm (W) x 91,44 m (L)
Label/Tape Size (imperial): 3 in W x 300 ft L
Label/Tape Size (metric): 76.20 mm W x 91.44 m L
Length (imperial): 300 ft
Length (metric): 91.44 m
Roll Length (imperial): 300 ft
Roll Length (metric): 91.44 m
Roll Width (imperial): 3 in
Roll Width (metric): 76.20 mm
Web Width (imperial): 3.2 in
Web Width (metric): 81.28 mm
Width (imperial): 3 in
Width (metric): 76.20 mm
EU RoHS Compliant: Yes
