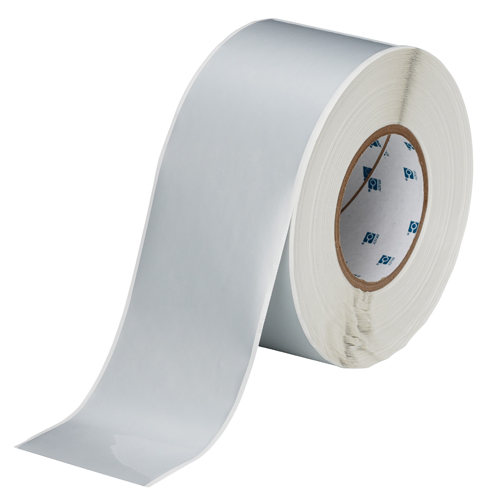

Brady THT-21-434 - Metallized Glossy Polyester with 2 mil Adhesive Labels 3 in W x 300 ft L Silver

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THT-21-434 (30285)
Pemro # BDW-9800

$ 437.99 See price in cart

Ships in 1 business day

Metallized Polyester (B-434) labels are designed for applications that use barcodes, alphanumerics, graphic symbols and logos and require nameplate-like quality.

Glossy, light gray finish gives labels a rating and serial plate appearance
Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
UL approved;CSA accepted
Service temperature of -40 to 194° F (-40 to 90° C)
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
This metallized label roll is supplied on a 3 inch core that has a thicker 0.66 inch wall to enable addition of i75-smart functionality.
If used in any other 3 inch core printer this roll will function as a manual roll
A ribbon is required to print this material. Use Part Number IP-R6002 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6002 for a different printer

Application: Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling
Color: Silver
Continuous or Die-cut: Continuous
Enables Industry Compliance (North America): ASTM D 1000, ASTM D 2979, ASTM G 155, CSA Approved, UL Recognized
Format: IP™ Compatible
Industry Compliance: CSA, UL
Printer and Label Applications: General Identification, Inspection Repair, Rating & Name Plates
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Row: 1
Recommended Ribbon: i75-R6002, IP-R6002, R6002
Recommended Ribbon Series: R4800, R4900, R6000HF, R6200
Ribbon Series: R6000HF
Smart Cell: No
Total Quantity: 90000 ft
Trade Name: MetaLabel
Average Outdoor Durability: Not Recommended
Material Properties: Metallic Appearance
Performance Characteristics: Abrasion resistance, Fuel/Oil resistance, Low temperature resistance, Solvent/Chemical resistance
Adhesive Type: Permanent Acrylic
Approval/Compliance (EMEA): UL Recognised, CSA Accepted
Brady Material Number: B-434A
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Metallized Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 130 °C
Maximum Service Temperature (°F): 266 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 130 °C
Service Temperature Range (°F): -94 °F - 266 °F
Thickness (imperial): 0.004 in
Thickness (metric): 0.102 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 3 in W x 300 ft L
Dimensions (metric): 76,20 mm (W) x 91,44 m (L)
Label/Tape Size (imperial): 3 in W x 300 ft L
Label/Tape Size (metric): 76.20 mm W x 91.44 m L
Length (imperial): 300 ft
Length (metric): 91.44 m
Roll Length (imperial): 300 ft
Roll Length (metric): 91.44 m
Roll Width (imperial): 3 in
Roll Width (metric): 76.20 mm
Web Width (imperial): 3.2 in
Web Width (metric): 81.28 mm
Width (imperial): 3 in
Width (metric): 76.20 mm
EU RoHS Compliant: Yes
