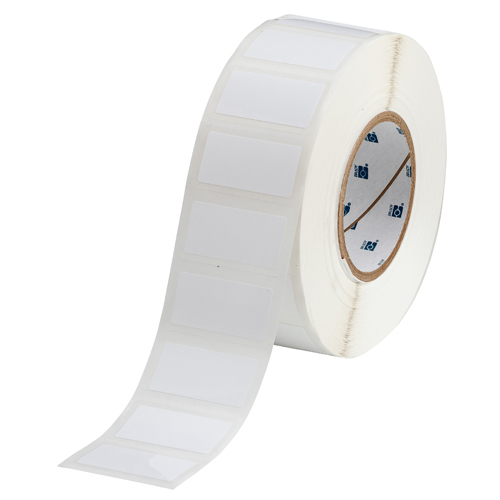

Brady THT-23-423-2 - Harsh Environment Multi-Purpose Polyester Labels for 3" Core Printers - 1" x 2" White

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THT-23-423-2 (30145)
Pemro # BDW-9810

$ 704.99 See price in cart

Available to Order

Permanent Polyester (B-423) is ideal for component identification, barcode labels, rating plates and solar panel identification.

Glossy white polyester with permanent acrylic adhesive is thermal transfer printable
Meets requirements of a halogen-free material per DIN VDE 0472 part 815
Service temperature of -94 to 230° F (-70 to 110° C)
A ribbon is required to print this material. Use Part Number IP-R6000 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6000 for a different printer

After Process: Yes, this material will work with this application
Application: Barcode Labeling, Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling
Board Application: Through Hole Technology - Top, After Process
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): Halogen Free (DIN VDE 0472 Part 815)
Format: IP™ Enabled
Industry: Buildings identification, Chemical, Construction, Education, Electrical, Electronics, Energy utilities, Government, Healthcare, ICT, Laboratory, Manufacturing, Process, Warehouse & logistics
Printer and Label Applications: General Identification, Inspection Repair, Rating & Name Plates
Printer Compatibility: BBP81, i5100, i6100, i7100, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 2000
Quantity per Row: 1
Recommended Ribbon: IP-R6000, R6000
Recommended Ribbon Series: R4900, R6000HF, R6200
Ribbon Series: R6000HF
Shape: Rectangle
Smart Cell: No
Total Quantity: 2000
Trade Name: WorkHorse®
Label Properties: Aggressive Adhesive, Harsh Environment, Heat Resistant, Permanent Adhesive
Material Properties: Halogen-free
Overlaminate B-Number: B-966B
Adhesive Type: Permanent Acrylic
Brady Material Number: B-423/B-966B
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Polyester with Polyester Overlaminate
Material Type: Polyester
Maximum Service Temperature (°C): 110 °C
Maximum Service Temperature (°F): 230 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 110 °C
Service Temperature Range (°F): -94 °F - 230 °F
Thickness (imperial): 0.0059 in
Thickness (metric): 0.15 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 1 in H x 2 in W
Dimensions (metric): 50,80 mm (W) x 25,40 mm (H)
Height (imperial): 1 in
Height (metric): 25.40 mm
Label/Tape Size (imperial): 1 in H x 2 in W
Label/Tape Size (metric): 25.40 mm H x 50.80 mm W
Overlaminate Dimensions (imperial): 1.25 in H x 2.25 in W
Overlaminate Dimensions (metric): 31.75 mm H x 57.15 mm W
Overlaminate Height (imperial): 1.25 in
Overlaminate Height (metric): 31.75 mm
Overlaminate Width (imperial): 2.25 in
Overlaminate Width (metric): 57.15 mm
Vertical Repeat (imperial): 1.375 in
Vertical Repeat (metric): 34.93 mm
Web Width (imperial): 2.45 in
Web Width (metric): 62.23 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
EU RoHS Compliant: Yes
