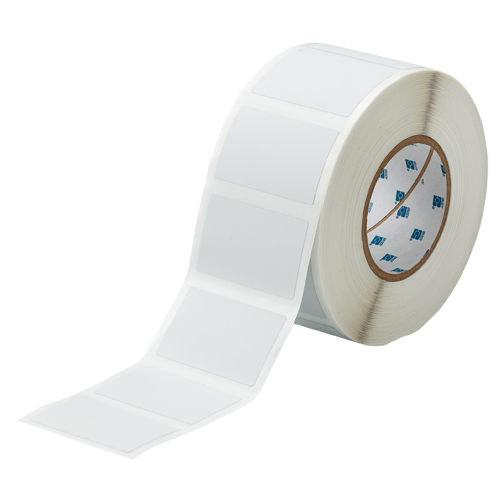

Brady THT-24-428-1 - Metallized Polyester Rating Plate and PCB Lbl 1.75in H x 2.75in W LGT GR 1000/RL

Manufacturer: Brady
Category: Printer Tapes & Labels
Model # THT-24-428-1 (30150)
Pemro # BDW-9815

$ 801.99 See price in cart

Ships in 1 business day

Metallized Polyester (B-428) labels are designed for applications that utilize barcodes, alphanumerics, graphic symbols and logos and require nameplate-like quality.

Matte, light gray finish with clear overlaminate gives labels a rating and serial plate appearance
Labels are designed to withstand numerous solvents and variable temperatures when applied to various surfaces
Service temperature of -40 to 248° F (-40 to 120° C)
A ribbon is required to print this material. Use Part Number IP-R4300 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R4300 for a different printer

After Process: Yes, this material will work with this application
Application: Asset Tracking, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, General Identification, Inventory and Inspection Labeling
Board Application: Through Hole Technology - Top, After Process
Color: Light Gray
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): Halogen Free (DIN VDE 0472 Part 815)
Format: IP™ Compatible
Industry: Manufacturing, Warehouse & logistics
Printer and Label Applications: General Identification, Inspection Repair, Rating & Name Plates
Printer Compatibility: BBP81, i5100, i6100, i7100, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 1000
Quantity per Row: 1
Recommended Ribbon: IP-R4300, R4300
Recommended Ribbon Series: R4300, R4500, R6200
Ribbon Series: R4300, R7950
Shape: Rectangle
Smart Cell: No
Total Quantity: 1000
Trade Name: MetaLabel
Label Properties: Heat Resistant, Metallic, Permanent Adhesive
Material Properties: Metallic Appearance
Overlaminate B-Number: B-966B
Adhesive Type: Permanent Acrylic
Brady Material Number: B-428/B-966B
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Metallized Polyester with Polyester Overlaminate
Material Type: Polyester
Maximum Service Temperature (°C): 120 °C
Maximum Service Temperature (°F): 248 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -70 °C - 120 °C
Service Temperature Range (°F): -40 °F - 248 °F
Thickness (imperial): 0.0073 in
Thickness (metric): 0.185 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 1.75 in H x 2.75 in W
Dimensions (metric): 69,85 mm (W) x 44,45 mm (H)
Height (imperial): 1.75 in
Height (metric): 44.45 mm
Label/Tape Size (imperial): 1.75 in H x 2.75 in W
Label/Tape Size (metric): 44.45 mm H x 69.85 mm W
Overlaminate Dimensions (imperial): 2 in H x 3 in W
Overlaminate Dimensions (metric): 50.80 mm H x 76.20 mm W
Overlaminate Height (imperial): 2 in
Overlaminate Height (metric): 50.80 mm
Overlaminate Width (imperial): 3 in
Overlaminate Width (metric): 76.20 mm
Vertical Repeat (imperial): 2.125 in
Vertical Repeat (metric): 53.98 mm
Web Width (imperial): 3.2 in
Web Width (metric): 81.28 mm
Width (imperial): 2.75 in
Width (metric): 69.85 mm
EU RoHS Compliant: Yes
