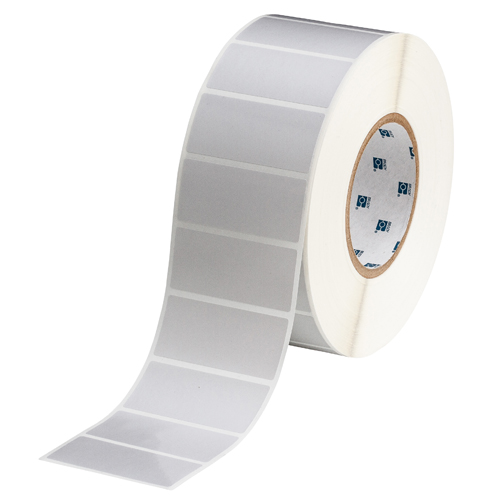

Brady THT-7-413-3 - Polyester with Acrylic Adhesive Labels 1.25in H x 2.75in W LGT GR 3000/RL

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THT-7-413-3 (104176)
Pemro # BDX-8393

$ 466.99 See price in cart

Ships in 1 business day

Non-Metal Polyester (B-413) is a thermal transfer polyester material with a metallic-looking finish. Ideal for barcoded asset tracking and rating plate applications.

Light gray top coated material with permanent adhesive adheres to most clean, dry surfaces
Thermal transfer printable
UL approved
Service temperature of -70 to 110° F (-56°C to 43° C)
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated. Contact Brady tech support for further information.
If used in any other 3 inch core printer this roll will function as a manual roll
A ribbon is required to print this material. Use Part Number IP-R6002 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6002 for a different printer

Application: Barcode Labeling, Component and Equipment Labeling, General Identification
Color: Light Gray
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, UL Recognized
Format: IP™ Enabled
Industry Compliance: UL
Printer and Label Applications: General Identification
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 3000
Quantity per Row: 1
Recommended Ribbon: i75-R6002, IP-R6002, R6002
Recommended Ribbon Series: R4400, R4900, R6000HF, R6200
Ribbon Series: R6000HF
Shape: Rectangle
Smart Cell: No
Total Quantity: 3000
Trade Name: MetaLabel
Material Properties: Metallic Appearance
Performance Characteristics: Fuel/Oil resistance, High heat resistance, Low temperature resistance
Adhesive Type: Permanent Acrylic
Approval/Compliance (EMEA): UL Recognised, cUL Recognised
Brady Material Number: B-413
Compatible Surface Types: High Surface Energy
Finish: Satin
Material: Metal and Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 110 °C
Maximum Service Temperature (°F): 230 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 110 °C
Service Temperature Range (°F): -94 °F - 230 °F
Thickness (imperial): 0.0034 in
Thickness (metric): 0.086 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 1.25 in H x 2.75 in W
Dimensions (metric): 69,85 mm (W) x 31,75 mm (H)
Height (imperial): 1.25 in
Height (metric): 31.75 mm
Label/Tape Size (imperial): 1.25 in H x 2.75 in W
Label/Tape Size (metric): 31.75 mm H x 69.85 mm W
Vertical Repeat (imperial): 1.375 in
Vertical Repeat (metric): 34.93 mm
Web Width (imperial): 2.95 in
Web Width (metric): 74.93 mm
Width (imperial): 2.75 in
Width (metric): 69.85 mm
EU RoHS Compliant: Yes
CA Prop 65 Warning: Due to inconclusive data, this product may not ship to California at this time
