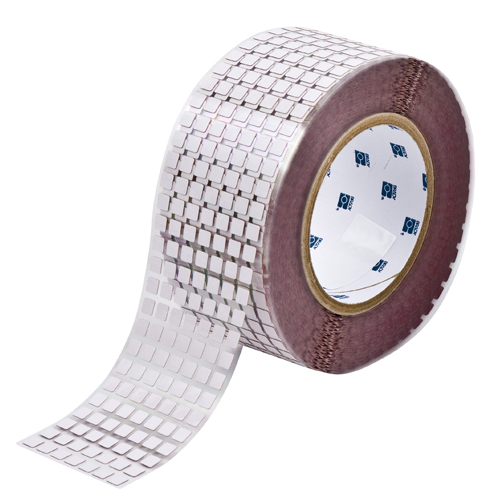

Brady THT-70-350-20 - Water-Indicating Labels 0.25 in H x 0.25 in W White 20000/RL

  • Manufacturer: Brady
  • Category: Thermal Transfer Labels
  • Model # THT-70-350-20 (80910)
  • Pemro # BDX-1064
  • $ 1,409.00 See price in cart
  • Available to Order

The B-350 printable, water-indicating laminate labels for thermal transfer printers are designed for use in locations where clear evidence of water intrusion is needed.

  • This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
  • If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated.  Contact Brady tech support for further information.
  • If used in any other 3 inch core printer this roll will function as a manual roll
  • A ribbon is required to print this material. Use Part Number IP-R4900 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R4900 for a different printer

Application: Security Identification, Water Indicating Labeling
Brand Name: Brady®
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000, ASTM D 2979, ASTM G 155, UL Recognized
Format: IP™ Enabled
Industry Compliance: UL
Print Technology: Thermal Transfer
Printer and Label Applications: General Identification, Inspection Repair
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 20000
Quantity per Row: 7
Recommended Ribbon: i75-R4900, IP-R4900, R4900
Recommended Ribbon Series: R4400, R4900
Ribbon Series: R4900
Shape: Square
Smart Cell: No
Total Quantity: 20000
Trade Name: VisAlert®
Label Properties: Permanent Adhesive, Water Indicating
Material Properties: Water-indicating
Performance Characteristics: Fuel/Oil resistance, Low temperature resistance, Water-indicating
Surface: For smooth & textured/rough surfaces
Adhesive Type: Permanent Acrylic
Approval/Compliance (EMEA): UL Recognised
Brady Material Number: B-350
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Water-indicating Polyester/Paper Laminate
Material Type: Polyester
Maximum Service Temperature (°C): 90 °C
Maximum Service Temperature (°F): 194 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 90 °C
Service Temperature Range (°F): -94 °F - 194 °F
Tamper Indication Type: Changes Color, indicates Exposure to Moisture
Thickness (imperial): 0.0102 in
Thickness (metric): 0.259 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 0.25 in H x 0.25 in W
Dimensions (metric): 6,35 mm (W) x 6,35 mm (H)
Height (imperial): 0.25 in
Height (metric): 6.35 mm
Horizontal Repeat (imperial): 0.32 in
Horizontal Repeat (metric): 8.13 mm
Label/Tape Size (imperial): 0.25 in H x 0.25 in W
Label/Tape Size (metric): 6.35 mm H x 6.35 mm W
Vertical Repeat (imperial): 0.35 in
Vertical Repeat (metric): 8.89 mm
Web Width (imperial): 2.37 in
Web Width (metric): 60.20 mm
Width (imperial): 0.25 in
Width (metric): 6.35 mm
EU RoHS Compliant: Yes
