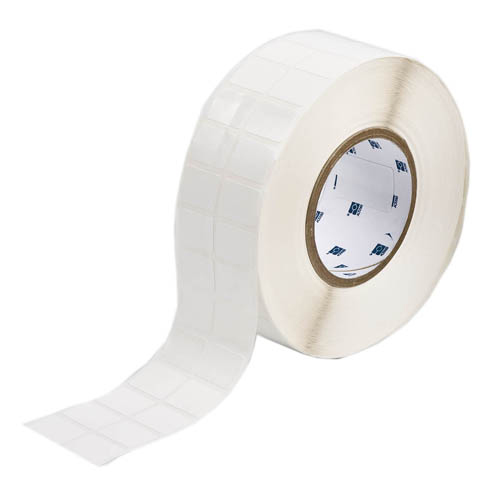

Brady THT-88-492-5 - FreezerBondz Ultra-Thin Cryogenic Polyester Labels 0.75 in H x 1 in W White 5000/RL

  • Manufacturer: Brady
  • Category: Thermal Transfer Labels
  • Model # THT-88-492-5 (116388)
  • Pemro # BDL-6113
  • $ 627.99 See price in cart
  • Available to Order

Take on extreme temps and curved surfaces with B-492 FreezerBondz™ Ultra-Thin Cryogenic Polyester Labels. Apply directly to pre-frozen glass, plastic and stainless steel.

  • Specialized – Aggressive adhesive B-492 FreezerBondz™ labels are ideal for curved, frozen surfaces like vials, centrifuge samples, tubes and slides
  • Durable – Labels withstand chemicals, abrasions, storage in liquid nitrogen and a high/low temperature range of -320° to 212°F (-196° to 100°C)
  • Adhesive – Permanent acrylic adhesive for tight bonding onto smooth, curved surfaces, or wrapping around tubes and vials with a 1/8 in. overlap
  • Certifications – RoHS compliant to 2011/65/EU and 2015/863, for material specific performance and properties, please refer to the Technical Data Sheet (TDS)
  • A ribbon is required to print this material. Use Part Number IP-R6400 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6400 for a different printer
  • This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
  • If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated. Contact Brady tech support for further information.
  • If used in any other 3 inch core printer this roll will function as a manual roll

Application: General Identification, Laboratory Labeling
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000
Format: IP™ Enabled
Industry: Laboratory, Healthcare, Biotechnology
Lab Application: Conical Tubes, General Laboratory Identification, Large Tubes, Tubes, Vials
Printer and Label Applications: Laboratory
Printer Compatibility: BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 5000
Quantity per Row: 2
Recommended Ribbon: i75-R6400, IP-R6400, R6400
Recommended Ribbon Series: R4300, R6400
Ribbon Series: R6400
Shape: Rectangle
Smart Cell: No
Total Quantity: 5000
Label Properties: Aggressive Adhesive, Low Temperature, Permanent Adhesive
Material Properties: Cold-temperature application, Cryogenic storage
Adhesive Type: Permanent Acrylic
Brady Material Number: B-492
Compatible Surface Types: Cold, High Surface Energy
Finish: Gloss
Material: FreezerBondz™ Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 110 °C
Maximum Service Temperature (°F): 230 °F
Minimum Application Temperature (°C): -196 °C
Minimum Application Temperature (°F): -320 °F
Minimum Service Temperature (°C): -196 °C
Minimum Service Temperature (°F): -320 °F
Service Temperature Range (°C): -196 °C - 110 °C
Service Temperature Range (°F): -320 °F - 230 °F
Thickness (imperial): 0.0032 in
Thickness (metric): 0.081 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 0.75 in H x 1 in W
Dimensions (metric): 25,40 mm (W) x 19,05 mm (H)
Height (imperial): 0.75 in
Height (metric): 19.05 mm
Horizontal Repeat (imperial): 1.1 in
Horizontal Repeat (metric): 27.94 mm
Label/Tape Size (imperial): 0.75 in H x 1 in W
Label/Tape Size (metric): 19.05 mm H x 25.40 mm W
Vertical Repeat (imperial): 0.875 in
Vertical Repeat (metric): 22.23 mm
Vial/Tube Size (metric): 1.5 mL
Web Width (imperial): 2.3 in
Web Width (metric): 58.42 mm
Width (imperial): 1 in
Width (metric): 25.40 mm
EU RoHS Compliant: Yes
CA Prop 65 Warning: Due to inconclusive data, this product may not ship to California at this time
