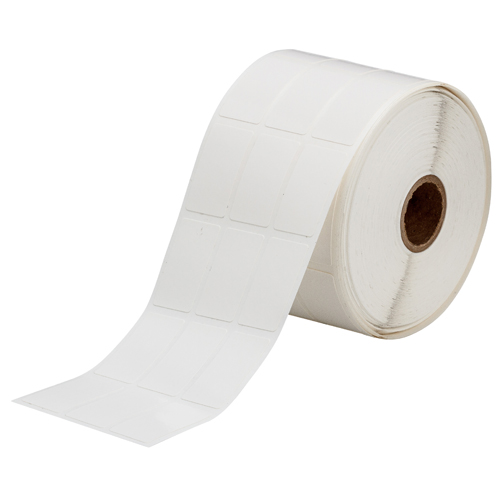

Brady THT-95-498-2.5-SC - Repositionable Vinyl Cloth Wire and Cable Lbls 1.437 in H x 0.8 in W WT 2500/RL

  • Manufacturer: Brady
  • Category: Thermal Transfer Labels
  • Model # THT-95-498-2.5-SC (114225)
  • Pemro # BDZ-1817
  • $ 408.99 See price in cart
  • Available to Order

Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.

  • The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
  • Sticks to any clean, dry surface
  • Specially formulated topcoat for excellent print quality
  • Semi-gloss finish for crisp, clean look
  • A ribbon is required to print this material. Use Part Number R6213

Application: Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Wire and Cable Labeling
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, UL Recognized
Industry: Electrical, Energy utilities, ICT, Laboratory, Voice & data communication
Industry Compliance: UL
Printer and Label Applications: Wire & Cable
Printer Compatibility: BBP11, BBP12, THT 1" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 2500
Quantity per Row: 3
Recommended Ribbon: R6213
Recommended Ribbon Series: R4300, R4800, R6000HF, R6200
Ribbon Series: R6200
Shape: Rectangle
Smart Cell: No
Total Quantity: 2500
Trade Name: CleanLift®
Adhesive Type: Repositionable Rubber
Approval/Compliance (EMEA): UL Recognised
Brady Material Number: B-498
Compatible Surface Types: Low Surface Energy
Finish: Semi-gloss
Material: Vinyl Cloth
Material Type: Vinyl
Maximum Service Temperature (°C): 80 °C
Maximum Service Temperature (°F): 176 °F
Minimum Application Temperature (°C): 10 °C
Minimum Application Temperature (°F): 50 °F
Minimum Service Temperature (°C): -40 °C
Minimum Service Temperature (°F): -40 °F
Service Temperature Range (°C): -40 °C - 80 °C
Service Temperature Range (°F): -40 °F - 176 °F
Thickness (imperial): 0.0073 in
Thickness (metric): 0.185 mm
Core Diameter (imperial): 1 in
Core Diameter (metric): 25.40 mm
Dimensions (imperial): 1.437 in H x 0.8 in W
Dimensions (metric): 20,32 mm (W) x 36,50 mm (H)
Height (imperial): 1.437 in
Height (metric): 36.50 mm
Horizontal Repeat (imperial): 0.9 in
Horizontal Repeat (metric): 22.86 mm
Label/Tape Size (imperial): 1.437 in H x 0.8 in W
Label/Tape Size (metric): 36.50 mm H x 20.32 mm W
Maximum Wire Diameter (imperial): 0.46 in
Maximum Wire Diameter (metric): 11.68 mm
Minimum Wire Diameter (imperial): 0.18 in
Minimum Wire Diameter (metric): 4.57 mm
Vertical Repeat (imperial): 1.562 in
Vertical Repeat (metric): 39.67 mm
Web Width (imperial): 2.8 in
Web Width (metric): 71.12 mm
Width (imperial): 0.8 in
Width (metric): 20.32 mm
Wire Diameter Range (imperial): 0.18 in - 0.46 in
Wire Diameter Range (metric): 4.57 mm to 11.68 mm
EU RoHS Compliant: No
