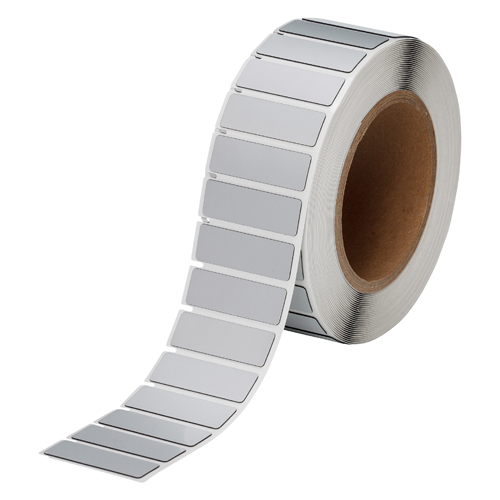

Brady THTEP-172-593-.5SL - Raised Panel Polyester Rectangular Labels 0.59 in H x 1.77 in W Silver 500/RL

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THTEP-172-593-.5SL (64422)
Pemro # BDX-6758

$ 309.99 See price in cart

Ships in 1 business day

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.

Can be used as rating and serial plates using alphanumerics that require nameplate quality
Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
UL approved
Service temperature of -4 to 212° F (-20 to 100° C)
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
This metallized label roll is supplied on a 3 inch core that has a thicker 0.66 inch wall to enable addition of i75-smart functionality.
If used in any other 3 inch core printer this roll will function as a manual roll
A ribbon is required to print this material. Use Part Number IP-R6000 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6000 for a different printer

Application: Electrical Labeling, General Identification
Color: Silver
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000, ASTM D 2979, UL Recognized, RoHS Compliant
Industry Compliance: UL
Printer and Label Applications: Datacom, Electrical
Printer Compatibility: BBP81, i5100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 500
Quantity per Row: 1
Recommended Ribbon: i75-R6000, IP-R6000, R6000
Recommended Ribbon Series: R4400, R6000HF
Ribbon Series: R6000HF, R4400
Shape: Rectangle
Smart Cell: No
Total Quantity: 500
Average Outdoor Durability: 3 to 5 Years
Label Properties: Heat Resistant, Permanent Adhesive
Material Properties: Raised
Adhesive Type: Permanent Acrylic - Foam Backed
Approval/Compliance (EMEA): UL Recognised, cUL Recognised
Brady Material Number: B-593
Compatible Surface Types: High Surface Energy
Finish: Gloss
Indoor or Outdoor Use: Indoor/Outdoor Use
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Service Temperature (°C): -20 °C
Minimum Service Temperature (°F): -4 °F
Service Temperature Range (°C): -20 °C - 100 °C
Service Temperature Range (°F): -4 °F - 212 °F
Thickness (imperial): 0.0256 in
Thickness (metric): 0.65 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 0.59 in H x 1.77 in W
Dimensions (metric): 44,96 mm (W) x 15,00 mm (H)
Height (imperial): 0.59 in
Height (metric): 15.00 mm
Label/Tape Size (imperial): 0.59 in H x 1.77 in W
Label/Tape Size (metric): 15.00 mm H x 44.96 mm W
Vertical Repeat (imperial): 0.725 in
Vertical Repeat (metric): 18.42 mm
Web Width (imperial): 1.97 in
Web Width (metric): 50.04 mm
Width (imperial): 1.77 in
Width (metric): 44.96 mm
EU RoHS Compliant: Yes
