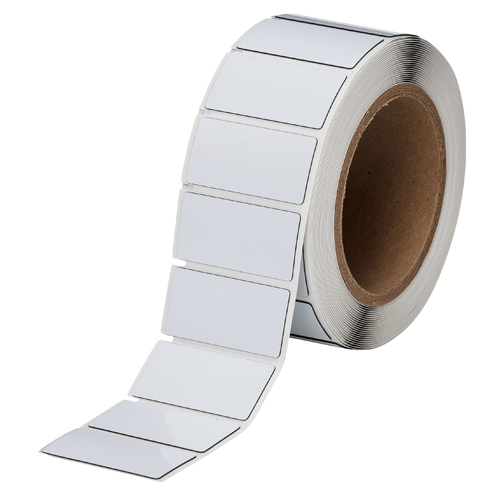

Brady THTEP173-593-.25 - Raised Panel Polyester Rectangular Labels 1 in H x 2 in W White 250/RL

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THTEP173-593-.25 (115846)
Pemro # BDZ-5263

$ 256.99 See price in cart

Ships in 1 business day

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.

Can be used as rating and serial plates using alphanumerics that require nameplate quality
Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
UL approved
Service temperature of -4 to 212° F (-20 to 100° C)
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed , sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated. Contact Brady tech support for further information.
If used in any other 3 inch core printer this roll will function as a manual roll
A ribbon is required to print this material. Use Part Number IP-R6000 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6000 for a different printer

Application: Electrical Labeling, General Identification
Color: White
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM D 1000, ASTM D 2979, UL Recognized, RoHS Compliant
Industry Compliance: UL
Printer and Label Applications: Datacom, Electrical
Printer Compatibility: BBP81, i5100, i7100, i7500, PR Plus, IP Series, THT 3" Core Printers
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 250
Quantity per Row: 1
Recommended Ribbon: i75-R6000, IP-R6000, R6000
Recommended Ribbon Series: R4400, R6000HF
Ribbon Series: R6000HF, R4400
Shape: Rectangle
Smart Cell: No
Total Quantity: 250
Average Outdoor Durability: 10 Years
Label Properties: Heat Resistant, Permanent Adhesive
Material Properties: Raised
Adhesive Type: Permanent Acrylic - Foam Backed
Approval/Compliance (EMEA): UL Recognised, cUL Recognised
Brady Material Number: B-593
Compatible Surface Types: High Surface Energy
Finish: Gloss
Indoor or Outdoor Use: Indoor/Outdoor Use
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Service Temperature (°C): -20 °C
Minimum Service Temperature (°F): -4 °F
Service Temperature Range (°C): -20 °C - 100 °C
Service Temperature Range (°F): -4 °F - 212 °F
Thickness (imperial): 0.0256 in
Thickness (metric): 0.65 mm
Core Diameter (imperial): 3 in
Core Diameter (metric): 76.20 mm
Dimensions (imperial): 1 in H x 2 in W
Dimensions (metric): 50,80 mm (W) x 25,40 mm (H)
Height (imperial): 1 in
Height (metric): 25.40 mm
Label/Tape Size (imperial): 1 in H x 2 in W
Label/Tape Size (metric): 25.40 mm H x 50.80 mm W
Vertical Repeat (imperial): 1.125 in
Vertical Repeat (metric): 28.58 mm
Web Width (imperial): 2.2 in
Web Width (metric): 55.88 mm
Width (imperial): 2 in
Width (metric): 50.80 mm
EU RoHS Compliant: Yes
