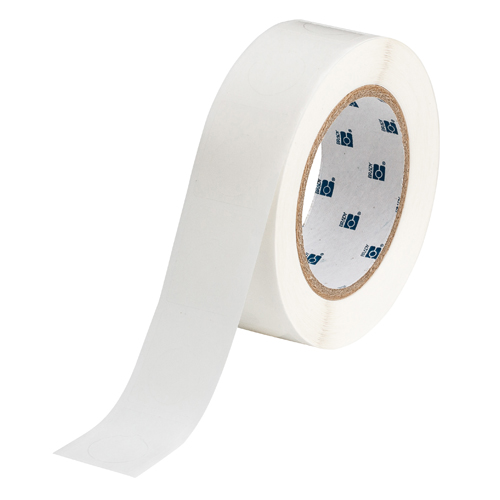

Brady THTOL-167-966B-1 - Polyester Overlaminate for Raised Panel Labels 1.5 in H x 1.2 in W Clear 1000/RL

Manufacturer: Brady
Category: Thermal Transfer Labels
Model # THTOL-167-966B-1 (62986)
Pemro # BDX-6719

$ 149.99 See price in cart

Ships in 1 business day

The B-966B material is a release coated, 1.5 mil clear polyester film with an acrylic pressure sensitive adhesive.

This overlaminate covers and protects raised panel labels
Has excellent clarity and abrasion resistance
Very good temperature and solvent resistance
RoHS compatibility Pass 2011/65/EU

Application: Electrical Labeling
Color: Clear
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155
Printer and Label Applications: General Identification
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 1000
Quantity per Row: 1
Shape: Rectangle
Smart Cell: No
Total Quantity: 1000
Trade Name: WorkHorse®
Material Properties: Optically Clear, Overlaminate
Adhesive Type: Permanent Acrylic
Brady Material Number: B-966B
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Application Temperature (°C): 10 °C
Minimum Application Temperature (°F): 50 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 100 °C
Service Temperature Range (°F): -94 °F - 212 °F
Thickness (imperial): 0.0029 in
Thickness (metric): 0.074 mm
Dimensions (imperial): 1.5 in H x 1.2 in W
Dimensions (metric): 30,48 mm (W) x 38,10 mm (H)
Height (imperial): 1.5 in
Height (metric): 38.10 mm
Label/Tape Size (imperial): 1.5 in H x 1.2 in W
Label/Tape Size (metric): 38.10 mm H x 30.48 mm W
Vertical Repeat (imperial): 1.625 in
Vertical Repeat (metric): 41.28 mm
Web Width (imperial): 1.525 in
Web Width (metric): 38.74 mm
Width (imperial): 1.2 in
Width (metric): 30.48 mm
EU RoHS Compliant: Yes
