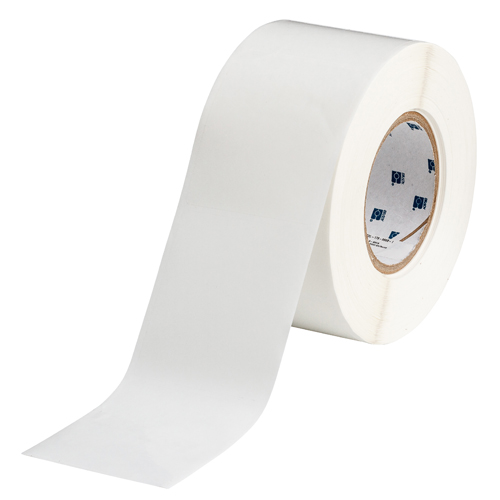

Brady THTOL-178-966B-1 - Polyester Overlaminate for Raised Panel Labels 3.5 in H x 3 in W Clear 1000/RL
- Manufacturer: Brady
- Category: Thermal Transfer Labels
- Model # THTOL-178-966B-1 (62998)
- Pemro # BDX-6731
- $ 473.99 See price in cart
-
Available to Order
The B-966B material is a release coated, 1.5 mil clear polyester film with an acrylic pressure sensitive adhesive.
- This overlaminate covers and protects raised panel labels
- Has excellent clarity and abrasion resistance
- Very good temperature and solvent resistance
- RoHS compatibility Pass 2011/65/EU
Application: Electrical Labeling
Color: Clear
Continuous or Die-cut: Die-cut
Corner Type: Rounded
Enables Industry Compliance (North America): ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155
Printer and Label Applications: General Identification
Printer supply or Pre-printed: Printer supply
Quantity per Roll: 1000
Quantity per Row: 1
Shape: Rectangle
Smart Cell: No
Total Quantity: 1000
Trade Name: WorkHorse®
Material Properties: Optically Clear, Overlaminate
Adhesive Type: Permanent Acrylic
Brady Material Number: B-966B
Compatible Surface Types: High Surface Energy
Finish: Gloss
Material: Polyester
Material Type: Polyester
Maximum Service Temperature (°C): 100 °C
Maximum Service Temperature (°F): 212 °F
Minimum Application Temperature (°C): 10 °C
Minimum Application Temperature (°F): 50 °F
Minimum Service Temperature (°C): -70 °C
Minimum Service Temperature (°F): -94 °F
Service Temperature Range (°C): -70 °C - 100 °C
Service Temperature Range (°F): -94 °F - 212 °F
Thickness (imperial): 0.0029 in
Thickness (metric): 0.074 mm
Dimensions (imperial): 3.5 in H x 3 in W
Dimensions (metric): 76,20 mm (W) x 88,90 mm (H)
Height (imperial): 3.5 in
Height (metric): 88.90 mm
Label/Tape Size (imperial): 3.5 in H x 3 in W
Label/Tape Size (metric): 88.90 mm H x 76.20 mm W
Vertical Repeat (imperial): 3.625 in
Vertical Repeat (metric): 92.08 mm
Web Width (imperial): 3.326 in
Web Width (metric): 84.48 mm
Width (imperial): 3 in
Width (metric): 76.20 mm
EU RoHS Compliant: Yes
