Desco 19655

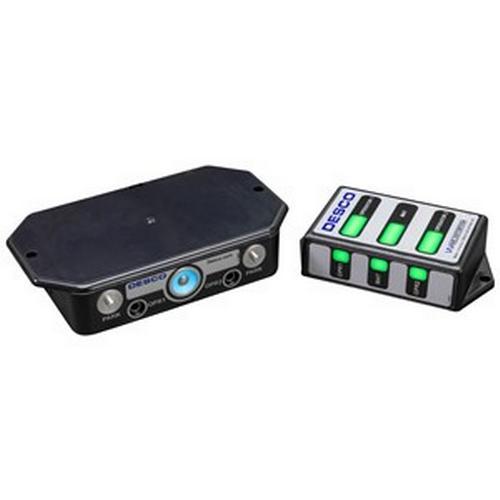

Dual Operator Monitor Continuously monitors the path-to-ground integrity of two operators and one ESD worksurface

  • Manufacturer: Desco
  • Model # 19655
  • Pemro # DES-3724
  • $ 253.29/each
  • Available to Order
Add to List

•Dual Operator Workstation Continuous Monitor
-Continuously monitors the path-to-ground integrity of two operators and one ESD worksurface

•Wave Distortion Technology
-Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor

•IMPROVED Operator Alarm
-Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent

•Park Delay Timer
-Indicates the 8 second delay to disconnect and park the operator wrist cord

•Visual Status Display
-Displays the operators’ and worksurface status: illuminates red when intermittent or failed connection occurs

•Mat Monitor Switch
-Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface

•Audible Alarm Adjustment
-Sets the audible alarm volume from loud to louder

•19323 Power Relay Accessory
-Controls power to workbenches, hand tools, and other electronic devices dependent on the Dual Operator Continuous Monitor’s status

•Park Snap
-Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm

•Single-wire Impedance Design
-Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0

•1.2 Volt Operator Test Voltage
-Reduces the risk of electrical overstress (EOS) for the handling of sensitive components

•<50 Millisecond Alarm Response Time
-Identifies failures and intermittencies

•Calibration Verification
-Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations

•NIST Calibrated with Certificate Included
-Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.

•100-240VAC Safety Certified Power Adapter with North American Plug
-Works with standard electrical systems in North America, Japan, and Asia
