Mountz 063293 (AURA 50i) - AURA 50i

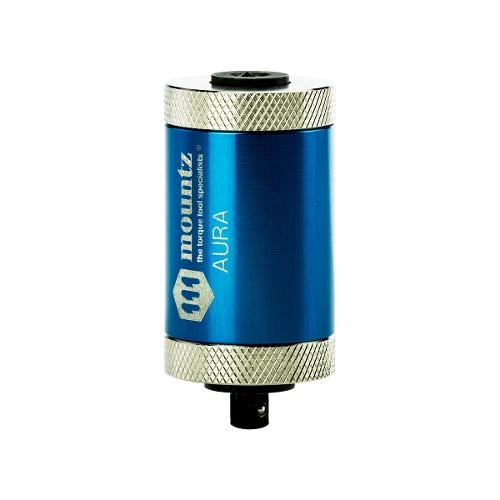

Mountz 063293 (AURA 50i)
Add to List

The Mountz AURA auto reversing run down adapters are designed to provide consistent and reliable torque readings for use with power-driven torque control tools. The AURA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

  • Ideal for testing and recording the results of power tools with a torque analyzer or sensor. Not recommended for pulse tools.
  • Operates in clockwise direction only. Once the tool shuts off, the AURA automatically unwinds for the next run down. Eliminates the need to back it out.
  • Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
  • Adapter is mounted in-line between tool drive and transducer.
  • Compact size and lightweight.
  • Includes two springs to cover the torque range 1 - 50 lbf.in


    • Specifications
    Minimum Torque Range - American: 1
    Maximum Torque Range - American: 50
    Torque Units - American: lbf.in
    Minimum Torque Range - S.I.: 11.3
    Maximum Torque Range - S.I.: 565
    Torque Units - S.I.: cN.m
    Input Drive: 1/4 F/Sq
    Output Drive: 1/4 M/Sq
