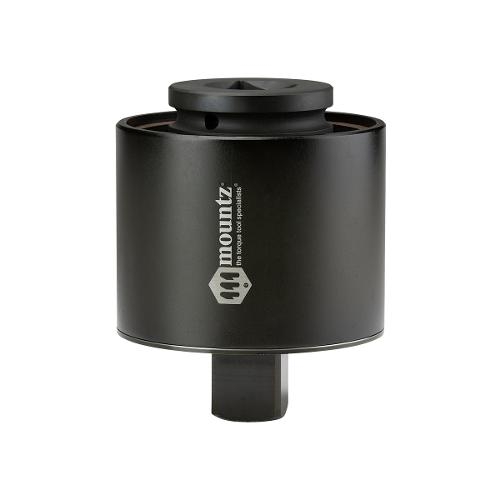

Mountz 063991 (RDA-1000F) - RDA1000F (100-1000 lbf.ft 1" F x 1" M)

Mountz 063991 (RDA-1000F)
  • Manufacturer: Mountz
  • Category: Torque Accessories
  • Model # 063991 (RDA-1000F)
  • Pemro # MTZ-2093
  • $4,550.00 $ 4,523.39/each
  • Available to Order
Add to List

The Mountz run down adapter (RDA) is designed to provide consistent and reliable torque readings for use with power-driven torque control tools. The RDA will reduce the impact and irregular peaks that cause poor repeatability. Each RDA has an effective torque range and will supply repeatable torque data within that range if used correctly. The run down adapter is mounted in-line between the tool drive and transducer.

  • Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
  • The adapter is mounted inline between the tool drive and transducer.
  • Hardened thread components, increase accuracy and life.
  • Square drives conform to ASME B107 standards for proper fit.
  • Non-rotating body for improved safety.
  • Compact size and lightweight.
  • Operates in clockwise direction only. After each run down, the RDA should be completely backed-up.


    • Specifications
    Minimum Torque Range - American: 100
    Maximum Torque Range - American: 1000
    Torque Units - American: lbf.ft
    Minimum Torque Range - S.I.: 135.6
    Maximum Torque Range - S.I.: 1355
    Torque Units - S.I.: N.m
    Drive Size: 1" Sq. Dr.
