Mountz 079008 (MTX20z) - MTX 20z Torque Sensor

Mountz 079008 (MTX20z)
Add to List

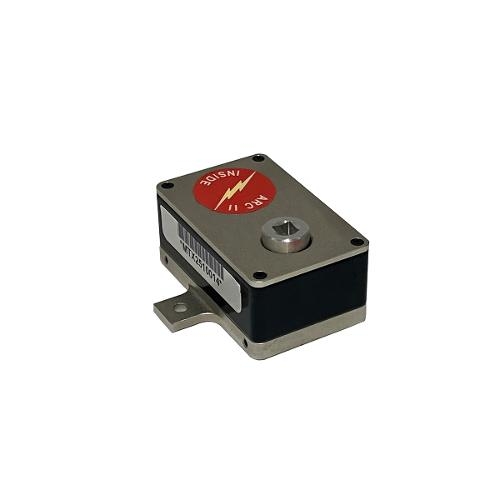

The MTX is a low torque sensor designed for calibrating and testing small hand screwdrivers, torque wrenches and power tools. With its low profile design, the calibration instrument can be used for automated applications, by mounting it to a palletized system. This saves time as there is need to remove the driver from the robot or off the automated system for calibration. These versatile torque sensors are used in conjunction with a torque tester.

  • For calibrating low torque hand screwdrivers, wrenches and power tools.
  • The low-profile design makes it ideal for calibrating robotic drivers on the assembly line.
  • Features ARCII technology, an instant auto-recognition system of the MTX connected to the PTT or LTT.
  • Mountable.
  • 1/4” female square drive.
  • Bi-directional


    • Specifications
    Minimum Torque Range - American: 2
    Maximum Torque Range - American: 20
    Torque Units - American: ozf.in
    Minimum Torque Range - S.I.: 1.5
    Maximum Torque Range - S.I.: 14
    Torque Units - S.I.: cN.m
    Drive Size: 1/4" F/Sq
    Tool Length: 2.55
    Tool Width: 1.6
    Tool Height: 1
